SPC-5 Taper Bore Pulley
  1. SPC-5 Taper Bore Pulley

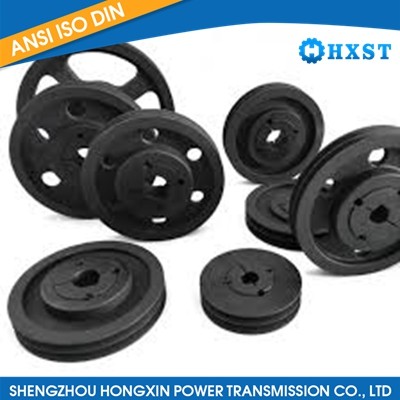

SPC-5 Taper Bore Pulley

Product Item:HXST-213

Model:SPC-5 Taper Bore Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

SPC-5 Taper Bore Pulley , taper bore pulley , taper shaft pulley , v belt pulley 5/8 bore
Send InquiryLive chat

Description

SPC-5 taper bore pulley is a specific type of pulley that features a taper bore design for easy and secure mounting onto a shaft. It is commonly used in power transmission systems where accurate speed ratios and motion control are required.

Here are some key features of the SPC-5 taper bore pulley:

Size: The "SPC-5" designation indicates that the pulley is designed to work with SPC (Super Power Curve) section belts, which have a specific width and pitch. The number "5" refers to the number of grooves on the pulley.

Taper Bore: The taper bore design allows the pulley to be mounted securely onto a shaft using a Taper Bushing. The taper bore typically has a tapered inner surface that matches the taper of the bushing, providing a tight and secure fit. This eliminates the need for additional keyways or set screws.

Quick Installation/Removal: The taper bore design enables quick and easy installation or removal of the pulley from a shaft. By tightening or loosening the screws on the taper bushing, the pulley can be securely attached or detached.

Material: Taper bore pulleys are commonly made from materials such as cast iron or steel, which offer durability and strength to handle power transmission requirements.

Applications: The SPC-5 taper bore pulley is commonly used in various power transmission applications, including machinery, industrial equipment, and automotive systems. It is suitable for systems that require precise speed ratios and torque transfer.


Product details

TAPER BORE PULLEYS SPC-5

SPC-5

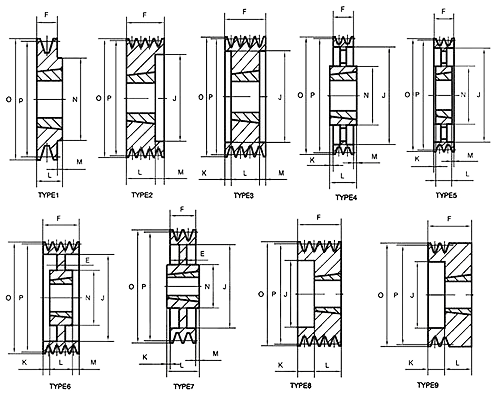

PART NO. P.D O.D TYPE BUSH NO. MAX BORE E F J K L M N
spc 200-5 200.0 209.6 3 3535 90 - 136 150 23.5 89 23.5 -
spc 212-5 212.0 221.6 3 3535 90 - 136 160 23.5 89 23.5 -
spc 224-5 224.0 233.6 3 3535 90 - 136 173 23.5 89 23.5 -
spc 236-5 236.0 245.6 3 3535 90 - 136 185 23.5 89 23.5 -
spc 250-5 250.0 259.6 3 3535 90 - 136 198 23.5 89 23.5 -
spc 265-5 265.0 274.6 3 3535 90 - 136 213 23.5 89 23.5 -
spc 280-5 280.0 289.6 3 3535 90 - 136 228 23.5 89 23.5 -
spc 300-5 300.0 309.6 6 3535 90 20 136 247 23.5 89 23.5 170
spc 315-5 315.0 324.6 6 3535 90 20 136 264 23.5 89 23.5 170
spc 335-5 335.0 344.6 6 3535 90 20 136 280 23.5 89 23.5 170
spc 355-5 355.0 364.6 6 3535 90 20 136 304 23.5 89 23.5 170
spc 375-5 375.0 384.6 6 3535 90 20 136 324 23.5 89 23.5 170
spc 400-5 400.0 409.6 5 3535 90 - 136 344 23.5 89 23.5 170
spc 425-5 425.0 434.6 5 4040 100 - 136 369 17 102 17 200
spc 450-5 450.0 459.6 5 4040 100 - 136 394 17 102 17 200
spc 475-5 475.0 484.6 5 4040 100 - 136 419 17 102 17 200
spc 500-5 500.0 509.6 5 4040 100 - 136 444 17 102 14 200
spc 530-5 530.0 539.6 5 4040 100 - 136 474 17 102 17 200
spc 560-5 560.0 569.6 5 4545 110 - 136 504 11 114 11 225
spc 630-5 630.0 639.6 5 5050 125 - 136 574 4.5 127 4.5 245
spc 710-5 710.0 719.6 5 5050 125 - 136 654 4.5 127 4.5 245
spc 800-5 800.0 809.6 5 5050 125 - 136 737 4.5 127 4.5 245
spc 1000-5 1000.0 1009.6 5 5050 125 - 136 937 4.5 127 4.5 245
spc 1250-5 1250.0 1259.6 5 5050 125 - 136 1187 4.5 127 4.5 245
