SPC-1 Standard Pulley
  1. SPC-1 Standard Pulley

SPC-1 Standard Pulley

Product Item:HXST-188

Model:SPC-1 Standard Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

SPC-1 Standard Pulley , spc pulley specification , spc sheaves , spc pulleys
Send InquiryLive chat

Description

SPC-1 standard pulley is a specific type of pulley that follows the SPC (Super Power Curve) profile for V-belts. It is commonly used in power transmission systems where accurate speed ratios and motion control are required.

Here are some key features of the SPC-1 standard pulley:

Size: The "SPC-1" designation indicates that the pulley is designed to work with SPC section V-belts, which have a specific width and pitch. The number "1" refers to the number of grooves on the pulley.

Standard Design: The SPC-1 pulley follows the standard design for SPC metric V-belt pulleys. It has a specific groove shape and dimensions to match the corresponding SPC V-belt.

Material: Standard pulleys like the SPC-1 can be made from various materials, including cast iron, steel, or aluminum. The choice of material depends on factors such as load requirements, operating conditions, and cost considerations.

Keyway or Set Screw: Depending on the design, the SPC-1 pulley may include a keyway or set screw mechanism to securely attach it to the shaft. This ensures proper alignment and prevents slippage during operation.

Applications: The SPC-1 standard pulley is commonly used in various power transmission applications, including machinery, industrial equipment, and automotive systems. It is suitable for systems that require precise speed ratios and torque transfer using SPC V-belts.

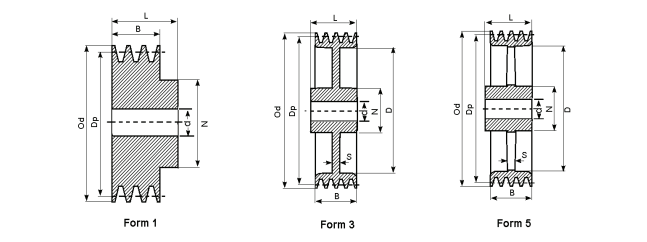

STANDARD BORE PULLEYS SPC-1


SPC-1

PART NO. P.D O.D TYPE N L D E B d
spc 100-1 100 109.6 1 60 50 - - 34 15
spc 120-1 120 129.6 1 65 50 - - 34 15
spc 140-1 140 149.6 1 70 50 - - 34 20
spc 150-1 150 159.6 1 70 50 - - 34 20
spc 160-1 160 169.6 1 72 50 - - 34 20
spc 180-1 180 189.6 3 76 50 123 16 34 20
spc 200-1 200 209.6 3 76 50 143 16 34 20
spc 225-1 225 234.6 3 86 50 168 16 34 20
spc 250-1 250 259.6 3 86 50 193 16 34 20
spc 280-1 280 289.6 3 86 50 223 16 34 20
spc 300-1 300 309.6 3 86 50 243 16 34 20
spc 315-1 315 324.6 5 92 50 258 16 34 20
spc 340-1 340 349.6 5 100 50 283 16 34 20
spc 355-1 355 364.6 5 110 50 298 16 34 20
spc 400-1 400 409.6 5 110 60 343 18 34 25
spc 450-1 450 459.6 5 110 60 393 18 34 25
spc 500-1 500 509.6 5 114 60 443 18 34 25
spc 560-1 560 569.6 5 114 60 503 20 34 25
spc 600-1 600 609.6 5 114 60 543 20 34 25
spc 630-1 630 639.6 5 114 60 573 20 34 25
