Product Item:HXST-327

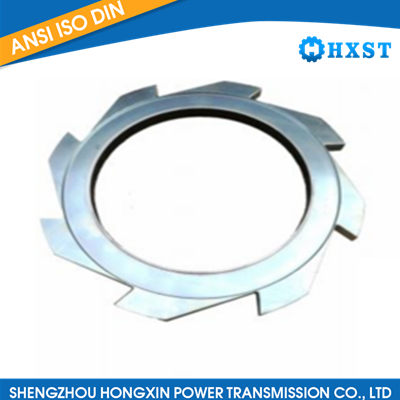

Model:Ratchet Wheel Sprocket For Escalator
Material: C45, stainless steel, etc.
Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc
Package:Standard export case, individual package (neutral or colorbox) available.
ratchet wheel sprocket is specifically mentioned for an escalator, it may be a unique or specialized component used in a particular escalator model or design. Here are some general details about a ratchet wheel sprocket for an escalator:
Function: The ratchet wheel sprocket serves a specific purpose in the escalator system. It typically engages with a ratchet mechanism, allowing the sprocket to rotate in one direction while preventing backward movement.
Construction: Ratchet wheel sprockets are typically made from durable materials such as steel or other suitable alloys. They are designed with teeth or pawls that interact with the ratchet mechanism, enabling unidirectional rotation.
Design and Compatibility: The design and size of the ratchet wheel sprocket depend on the specific escalator model or custom design. It is crucial to ensure that the sprocket is compatible with the other components of the escalator drive system and properly matches the intended application.
Maintenance: Regular maintenance, including lubrication and inspection, is necessary to ensure proper functioning and reliability of the ratchet wheel sprocket. Following the manufacturer's guidelines for maintenance intervals and procedures is essential.
Safety Considerations: The ratchet wheel sprocket, like other components in the escalator system, contributes to safe operation. Proper maintenance and inspection help identify any potential issues that could affect the escalator's safety and performance.
|
ID |
Cust. |
Types |
Total Height |
Outer Diameter |
Inner Diameter |
Tooth Width |
Number of Teeth |
|
|
|
|
(H) |
（D) |
(0d) |
(W) |
(z) |
|
|
|
|
mm |
|
|||
|
TK-RW -001 |
TK |
Left 左置 |
19.0 |
360.00 |
250.60 |
17.50 |
8 |
|
TK-RW -002 |
TK |
Right 右置 |
19.0 |
360.00 |
250.60 |
17.50 |
8 |
|
TK-RW -003 |
TK |
Half 分体 |
20.0 |
335.00 |
215.00 |
20.00 |
8 |
|
TK RW 004 |
TK |
Middle 中置 |
30.0 |
335.00 |
225.60 |
24.00 |
8 |
|
TK-RW -005 |
TK |
Middle 中置 |
50.0 |
335.00 |
|
||
