Product Item:HXST-339

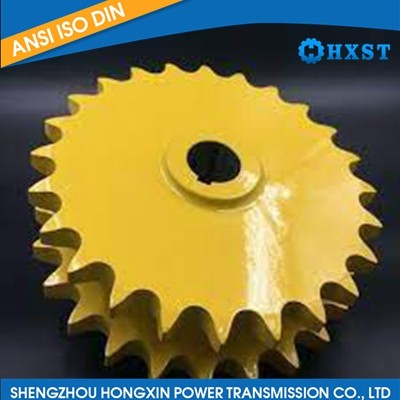

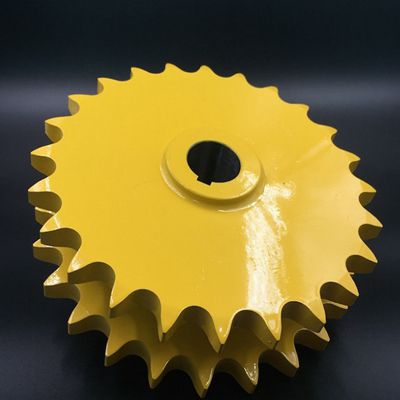

Model： D60C-24H Agriculture Sprocket
Material: C45, stainless steel, etc.
Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc
Package:Standard export case, individual package (neutral or colorbox) available.
D60C-24H Agriculture Sprocket is a specific type of sprocket commonly used in agricultural machinery and equipment. Here's some information about this sprocket:
Size and Pitch: The "D60C" indicates the sprocket size and pitch. In this case, it corresponds to a 60-pitch roller chain, which means that the Roller Chain has a 3/4 inch (19.05 mm) pitch.
Tooth Count: The "24H" indicates the number of teeth on the sprocket. In this example, the sprocket has 24 teeth.
Material and Construction: The specific material and construction details may vary depending on the manufacturer and application requirements. However, agriculture sprockets are typically made from durable materials such as steel or hardened alloys to withstand the demanding conditions encountered in agricultural operations.
Application: The D60C-24H Agriculture Sprocket is commonly used in agricultural machinery and equipment that require power transmission and motion control. It can be found in various agricultural applications, including combines, harvesters, balers, and other farm equipment that utilize roller chains for driving and conveying purposes.
Maintenance: Proper maintenance and regular inspection of the sprocket are essential to ensure optimal performance and longevity. This includes lubrication, cleaning, and monitoring for any signs of wear or damage. If the sprocket shows significant wear or damage, it should be replaced promptly to avoid equipment malfunction or failure
Product Name: Agriculture Chain Sprocket D60C-24H Yellow paint
Chain Standard：ANSI 60 / DIN 12A-2/ ISO 12A-2
TYPE: C
Pitch：25.4 mm
Roller Diam.: 15.88mm
Teeth Thickness: 14.6 +0/-0.30 mm
Bore: 31.75 +0.05/-0 mm
