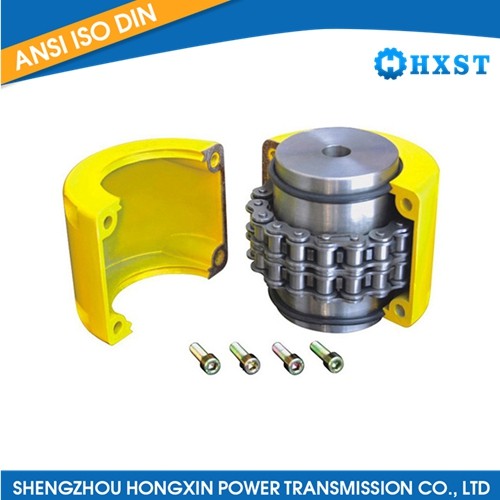

KC Chain Coupling
  1. KC Chain Coupling

KC Chain Coupling

Product Item:HXST-317

Model: KC Chain Coupling

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

KC Chain Coupling , kc 6020 chain coupling , kc coupling , sprocket chain coupling , coupling chain
Send InquiryLive chat

Description

KC chain coupling is a type of flexible coupling that utilizes roller chains to connect two shafts. Here are some key details about the KC Chain Coupling:

Function: The KC chain coupling is designed to transmit torque and accommodate misalignment between two shafts in a mechanical system. It provides flexibility and compensates for angular, parallel, and axial misalignments.

Construction: The KC chain coupling consists of two hubs, each mounted on a separate shaft, and a Roller Chain that connects the hubs. The hubs typically have teeth or sprockets that engage with the roller chain, ensuring a secure connection.

Roller Chain: The roller chain used in the KC chain coupling is usually a standard roller chain, such as ANSI or ISO chain, depending on the design and specifications of the coupling. The chain provides flexibility and allows for relative movement between the two shafts.

Misalignment Compensation: The design of the KC chain coupling allows for angular misalignment, parallel misalignment, and limited axial misalignment. The roller chain accommodates these misalignments by flexing and adjusting its length during operation.

Applications: KC chain couplings are commonly used in various industrial applications where flexibility and misalignment compensation are required. They can be found in power transmission systems, conveyors, pumps, mixers, and other machinery and equipment.

Maintenance: Regular inspection for wear, damage, and proper lubrication of the roller chain is important to maintain the performance and longevity of the KC chain coupling. Following the manufacturer's recommended maintenance guidelines is essential
