C Jaw Type Coupling
  1. C Jaw Type Coupling

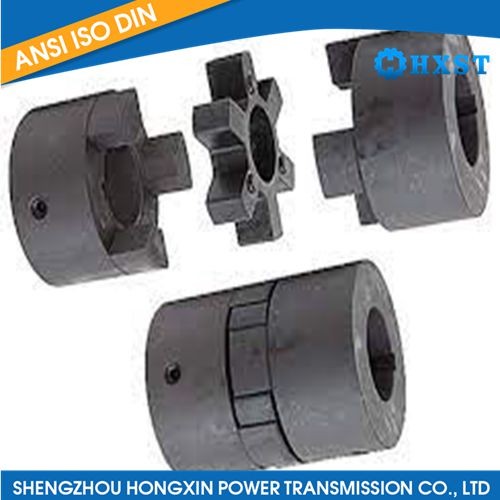

C Jaw Type Coupling

Product Item:HXST-912

Model: C Jaw Type Coupling

Material:The hubs of a C Jaw Type Coupling are typically made from materials such as steel or cast iron, while the elastomeric spider is made from materials like polyurethane or rubber

Damping Characteristics: The elastomeric spider of the C Jaw Type Coupling offers some level of vibration damping, helping to reduce the transmission of vibrations and shocks between the connected sha

Application Versatility: C Jaw Type Couplings find application in a wide range of industries, including manufacturing, automation, robotics, pumps, conveyors, and other mechanical systems.

C Jaw Type Coupling , jaw type couplings , jaw coupling , flexible jaw coupling , jaw coupling installation
Send InquiryLive chat

Description

The C jaw type coupling is a type of flexible coupling used to connect two shafts for torque transmission. It consists of two hubs with curved jaws and an elastomeric insert.

Key features of a C jaw type coupling include:

Jaw Design: The coupling hubs have curved jaws that interlock with each other. These jaws provide flexibility and allow for angular misalignment compensation between the connected shafts.

Elastomeric Insert: The C jaw coupling uses an elastomeric insert made of materials such as rubber or polyurethane. The insert sits between the jaws of the hubs and acts as a cushion, providing vibration dampening, shock absorption, and compensating for slight misalignments.

Misalignment Compensation: The design of the C jaw coupling allows it to accommodate angular misalignment between the shafts. It can handle small angular offsets while maintaining torque transmission efficiency and reducing stress on the system.

Torque Transmission: C jaw couplings are capable of transmitting moderate to high torque loads between the connected shafts. The curved jaws provide a secure connection and efficient power transfer.

Easy Installation and Maintenance: C jaw couplings are relatively easy to install and require minimal maintenance. They typically consist of two hubs and a removable elastomeric insert, allowing for straightforward replacement when needed.

C jaw couplings are commonly used in various industrial applications, including pumps, compressors, conveyors, and general machinery. Their ability to compensate for angular misalignment and provide vibration dampening makes them suitable for systems where smooth operation and reduced wear are important.

It's important to note that C jaw couplings have specific torque and misalignment limits specified by manufacturers. Operating beyond these limits can result in premature wear, reduced coupling life, and potential equipment damage. Therefore, it's crucial to follow the manufacturer's guidelines for proper selection, installation, and maintenance of C jaw type couplings.
