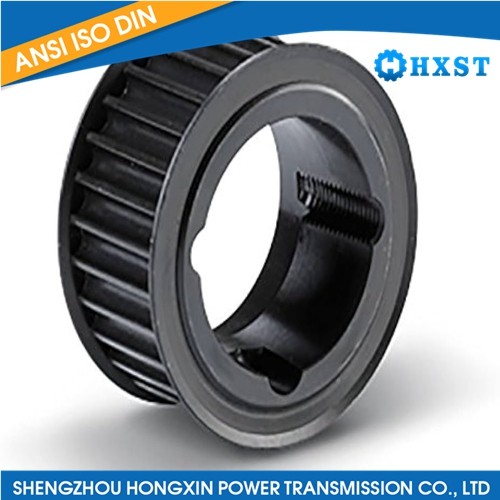

H200 Taper Bushing Timing Pulley
  1. H200 Taper Bushing Timing Pulley

H200 Taper Bushing Timing Pulley

Product Item:HXST-227

Model:H200 Taper Bushing Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

H200 Taper Bushing Timing Pulley , taper bushing pulley , split taper bushing pulley , taper lock timing pulley
Send InquiryLive chat

Description

H200 Timing Pulley is a type of timing pulley commonly used in various mechanical systems and power transmission applications. Here are some key features and characteristics of the H200 Timing Pulley:

Material: The H200 Timing Pulley is typically made from high-quality materials such as aluminum, steel, or plastic. The choice of material depends on factors like load requirements, environmental conditions, and cost considerations.

Tooth Profile: The pulley has teeth on its circumference that engage with the teeth of a timing belt. The tooth profile of the H200 Timing Pulley is designed to ensure proper meshing and smooth power transmission. Common tooth profiles include trapezoidal (such as T-type or HTD) or curvilinear (such as GT2).

Size and Configuration: The H200 Timing Pulley comes in various sizes and configurations to suit different application requirements. This includes variations in the number of teeth, bore diameter, belt width, and overall dimensions. It is important to select the appropriate size and configuration to achieve the desired speed ratio and torque transfer.

Mounting Options: The H200 Timing Pulley can be mounted using various methods, including set screws, clamping hubs, or Taper Bushings. The specific mounting option depends on the design of the system and the requirements for easy installation and removal.

Application Range: The H200 Timing Pulley is commonly used in applications that require precise motion control and synchronization, such as CNC machines, 3D printers, robotics, conveyors, and other automated machinery. It is used to transmit rotational motion from a motor or power source to another component via a timing belt.
