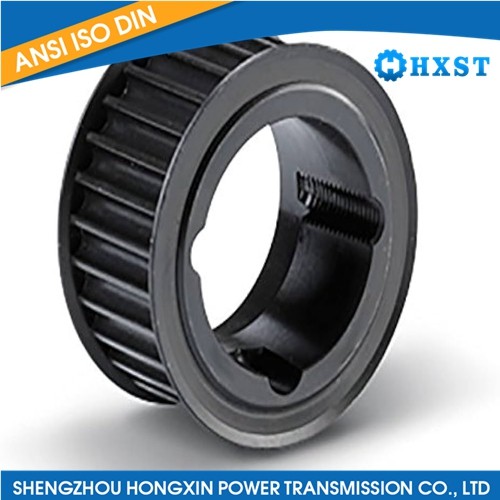

H150 Taper Bushing Timing Pulley

Product Item:HXST-226

Model:H150 Taper Bushing Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

Description

H150 Taper Bushing Timing Pulley is a specific type of timing pulley that utilizes a taper bushing for easy installation and removal. Here are some key features and characteristics of the H150 Taper Bushing Timing Pulley:

Material: The pulley is typically made from high-quality materials such as aluminum or steel, providing durability and strength.

Taper Bushing System: The H150 pulley incorporates a taper bushing system, which allows for quick and secure mounting onto a shaft. The taper bushing provides a tight fit and reduces slippage during operation. It also facilitates easy disassembly and repositioning of the pulley if needed.

Tooth Profile: The pulley has teeth on its surface that mesh with the teeth of the timing belt. The tooth profile is usually standardized, such as a trapezoidal or curvilinear shape, depending on the specific application requirements. This ensures precise and synchronized power transmission.

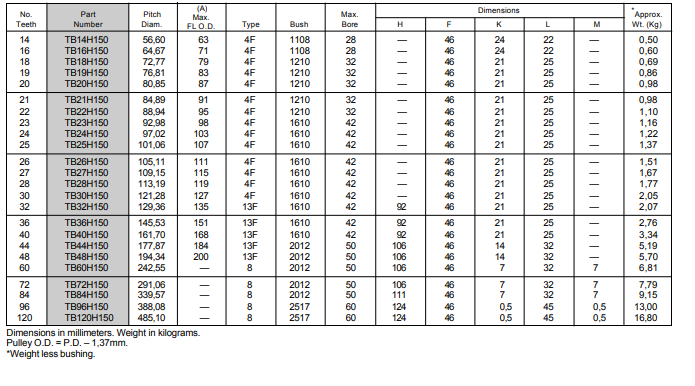

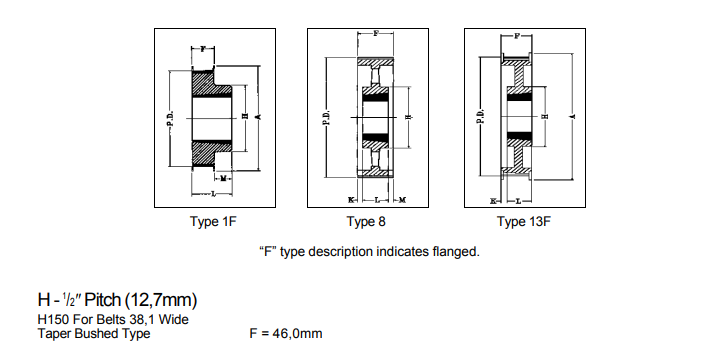

Size and Configuration: The H150 Taper Bushing Timing Pulley comes in various sizes and configurations to accommodate different shaft diameters, belt widths, and number of teeth. This versatility allows for compatibility with a wide range of applications and design requirements.

Application Range: The H150 Taper Bushing Timing Pulley is commonly used in applications where accurate motion control and synchronization are crucial. It is often found in power transmission systems, robotics, conveyor systems, printing machinery, and other automated equipment.
