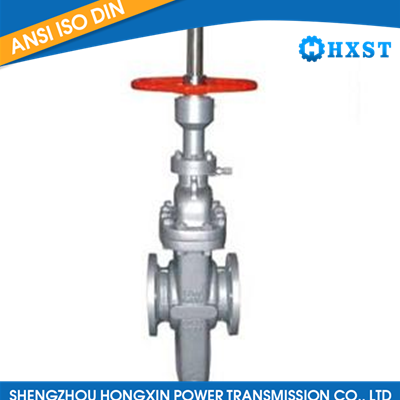

Bringing a guide hole tablet valve

Description

Z543WF-16C Direction Pole Tablet Table Valve Structure Features:

1. The valve seat adopts the O -shaped seal sealing and the structure of the floating valve seat with a pre -tightening force, so that the entrance and exit of the fabric gate valve seal; and the opening and closing torque of the structure is only 1/2 of the ordinary valve, which can achieve an easy opening. Offer valve

2. When it is full, the passage is smooth to a straight line, the flow resistance coefficients are very small, and there is no pressure loss.

3. Using a filler structure with self -sealing ability, there is no need to regulate it frequently. It is very light to open and off, and the sealing is reliable. The filler letter is provided with an auxiliary sealing oil injection structure. The most prone to leakage at the valve filler

4. When the flat gate valve is closed, it can automatically remove the inner cavity high pressure to ensure the safety of use

5. Full closed structure, good protection performance, can adapt to all -weather requirements

6. The sealing structure of the valve seat should be elastic and has a pre -tightening force. The valve seat and sealing are always sealing face -to -face seals.

7. The valve seat has a self -cleaning function, and it is not directly washed by the airflow during the valve opening or closing process. The valve seat should be made of lubrication and non -wear materials.

8. The failure of the valve execution agency will not affect the other parts of the valve, and the maintenance and replacement work can be carried out without disassembling the valve.
