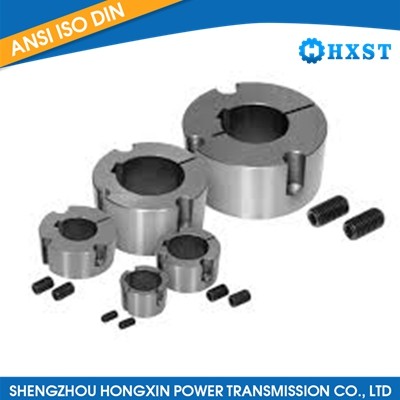

Taper Bushing 1008 or 5050
  1. Taper Bushing 1008 or 5050

Taper Bushing 1008 or 5050

Product Item:HXST-321

Model:Taper Bushing 1008 or 5050

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

Taper Bushing 1008 or 5050 , taper bushing types , taper bushing dimensions , taper bushing installation
Send InquiryLive chat

Description

Both the Taper Bushing 1008 and 5050 are types of bushings used for mounting components onto shafts. Here's some information about each:

Taper Bushing 1008: The Taper Bushing 1008 is a specific type of bushing that is commonly used for mounting pulleys, sprockets, or other components onto a shaft. It has a tapered design that allows for easy installation and removal by tightening or loosening screws or bolts.

Taper Bushing 5050: The Taper Bushing 5050 is another type of bushing used for mounting components onto a shaft. It also features a tapered design for easy installation and removal. However, the specific dimensions and specifications of the Taper Bushing 5050 may vary depending on the manufacturer

TAPER BUSHINGS 1008 thur 5050

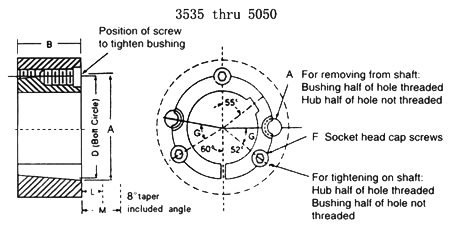

DIMENSIONS FOR 1008 THRU 5050 BLT TAPER BUSHINGS

Bush No. A B D Set Screws G
1008 1.386 7/8 1 21/64 1/4x1/2 --
1108 1.511 7/8 1 29/64 1/4x1/2 --
1210 1 7/8 1 1 3/4 3/8x5/8 --
1215 1 7/8 1 1/2 1 3/4 3/8x5/8 --
1310 2 1 1 7/8 3/8x5/8 --
1610 2 1/4 1 2 1/8 3/8x5/8 --
1615 2 1/4 1 1/2 2 1/8 3/8x5/8 --
2012 2 3/4 1 1/4 2 5/8 7/16x7/8 --
2517 3 3/8 1 3/4 3 1/4 1/2x1 --
2525 3 3/8 2 1/2 3 1/4 1/2x1 --
3020 4 1/4 2 4 5/8x1 1/4 --
3030 4 1/4 3 4 5/8x1 1/4 --
3535 3 1/2 3 1/2 4.83 1/2x1 1/2 40°
4040 4 4 5.54 5/8x1 3/4 40°
4545 4 1/2 4 1/2 6.13 3/4x2 40°
5050 5 5 6.72 7/8x2 1/4 37°
