Product Item:HXST-047

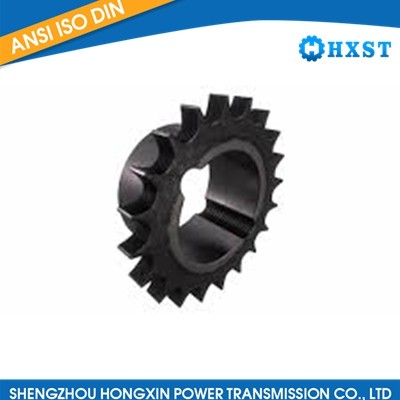

Model: 16B-1 Taper lock Sprocket
Material: C45, stainless steel, etc.
Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc
Package:Standard export case, individual package (neutral or colorbox) available.
| No. of teeth | pitch circle | tip circle | hub-dia. | total length | for |
| d | do | ND | L | bush | |
| 13 | 106,12 | 117,0 | 73 | 25 | 1610 |
| 14 | 114,15 | 125,0 | 76 | 25 | 1610 |
| 15 | 122,17 | 133,0 | 76 | 25 | 1610 |
| 16 | 130,20 | 141,0 | 90 | 32 | 2012 |
| 17 | 138,22 | 149,0 | 90 | 32 | 2012 |
| 18 | 146,28 | 157,0 | 108 | 45 | 2517 |
| 19 | 154,33 | 165,2 | 108 | 45 | 2517 |
| 20 | 162,38 | 173,2 | 108 | 45 | 2517 |
| 21 | 170,43 | 181,2 | 110 | 45 | 2517 |
| 22 | 178,48 | 189,3 | 110 | 45 | 2517 |
| 23 | 186,53 | 197,5 | 110 | 45 | 2517 |
| 24 | 194,59 | 205,5 | 110 | 45 | 2517 |
| 25 | 202,66 | 213,5 | 110 | 45 | 2517 |
| 26 | 210,72 | 221,6 | 110 | 45 | 2517 |
| 27 | 218,79 | 229,6 | 110 | 45 | 2517 |
| 28 | 226,85 | 237,7 | 110 | 45 | 2517 |
| 30 | 243,00 | 254,0 | 140 | 51 | 3020 |
| 38 | 307,59 | 320,7 | 140 | 51 | 3020 |
| 45 | 364,13 | 377,1 | 140 | 51 | 3020 |
| Material: cast iron (GG-22) | |||||
| 57 | 461,07 | 474,0 | 140 | 51 | 3020 |
| 76 | 614,65 | 627,0 | 140 | 51 | 3020 |
| 95 | 768,22 | 781,1 | 140 | 51 | 3020 |
| 114 | 921,81 | 934,3 | 140 | 76 | 3030 |
