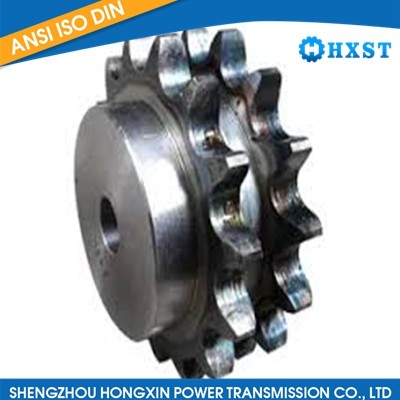

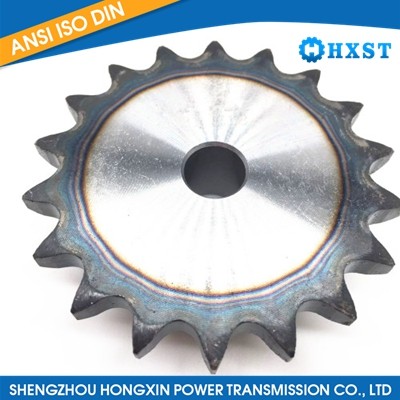

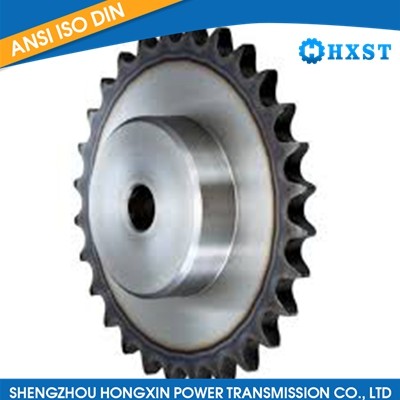

ANSI 120A-B-1-2 Sprockets and Platewheel

Product Item:HXST-068

Model: ANSI 120A-B-1-2 Sprockets and Platewheel

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

Description

The ANSI 120A-B-1-2 configuration refers to a specific type of Roller Chain and associated sprockets and platewheels used for power transmission in industrial applications. Here's a breakdown of the components:

ANSI 120: This indicates the pitch size of the chain, where "120" represents a 1.5-inch pitch. The pitch size determines the distance between the centers of adjacent roller pins in the chain.

A-B-1-2: These letters and numbers represent the series, design variation, and construction details of the roller chain. The specific meaning of each letter and number may vary depending on the manufacturer or standard being followed. For example, "A" could indicate a certain series or design variation, while "B" could denote another variation within that series.

Sprockets and Platewheel:
Sprockets and platewheels are the toothed components that mesh with the roller chain. In this case, the number following the design variation (e.g., 1-2) usually indicates the number of teeth on the sprocket or platewheel.

It's important to note that the exact details of the sprockets and platewheels, such as the number of teeth and material composition, may vary based on the specific requirements of the application and the manufacturer's design.

In summary, the ANSI 120A-B-1-2 configuration consists of a roller chain with a 1.5-inch pitch, along with associated sprockets and platewheels. These components are used for power transmission in industrial machinery, with the sprockets and platewheels designed to match the specifications of the roller chain.
