ANSI 100A-B-1-2-3 Sprockets and Platewheel

Product Item:HXST-067

Model: ANSI 100A-B-1-2-3 Sprockets and Platewheel

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

Description

The ANSI 100A-B-1-2-3 refers to a specific type of roller chain, commonly used in industrial applications for power transmission. Let's break down the components:

ANSI 100: This indicates the pitch size of the chain, where "100" represents a 1.25-inch pitch. The pitch size determines the distance between the centers of adjacent roller pins in the chain.

A-B-1-2-3: These letters and numbers represent the series, design variation, and construction details of the roller chain. The specific meaning of each letter and number may vary depending on the manufacturer or standard being followed. For example, "A" could indicate a certain series or design variation, while "B" could denote another variation within that series.

Sprockets and Platewheel:

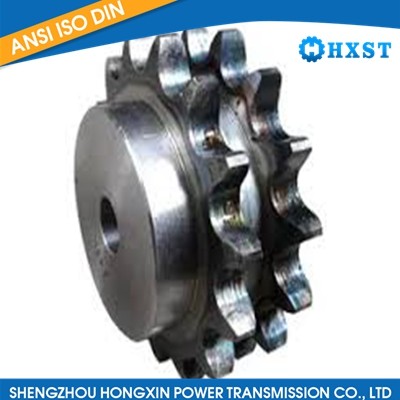

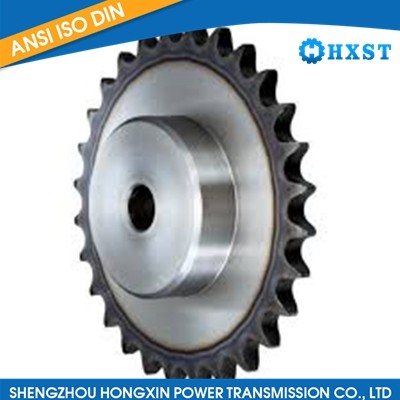

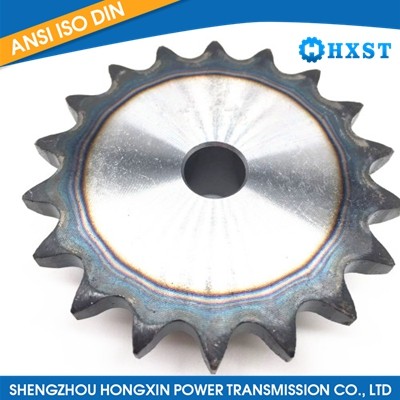

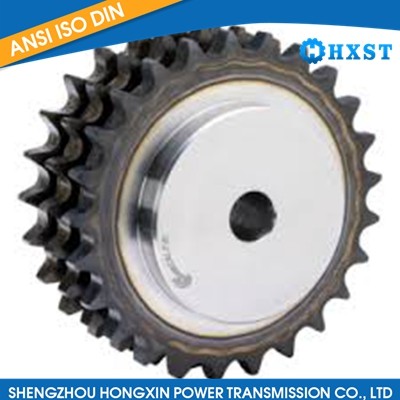

Sprockets and platewheels are the toothed components that mesh with the roller chain. They come in various sizes and configurations, such as single, double, or triple sprockets. The number following the design variation (e.g., 1-2-3) usually indicates the number of teeth on the sprocket or platewheel. The material used for sprockets and platewheels can vary based on the application requirements and can include steel, cast iron, or other durable materials.

In summary, the ANSI 100A-B-1-2-3 configuration refers to a specific type of roller chain, along with associated sprockets and platewheels, used for power transmission in industrial machinery. The chain pitch is 1.25 inches, and the sprocket or platewheel configuration may vary based on the specific designations given by the manufacturer or industry standards.
