SPZ-2 Standard Pulley
  1. SPZ-2 Standard Pulley

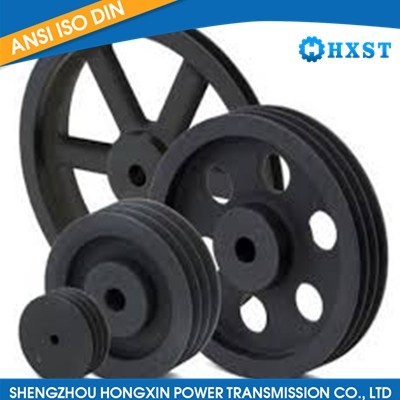

SPZ-2 Standard Pulley

Product Item:HXST-195

Model:SPZ-2 Standard Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

SPZ-2 Standard Pulley , spz sheaves , spz pulley catalog , taper shaft pulley
Send InquiryLive chat

Description

SPZ-2 standard pulley is a specific type of pulley that follows the SPZ metric profile for V-belts. It is commonly used in power transmission systems where accurate speed ratios and motion control are required.

Here are some key features of the SPZ-2 standard pulley:

Size: The "SPZ-2" designation indicates that the pulley is designed to work with SPZ section V-belts, which have a specific width and pitch. The number "2" refers to the number of grooves on the pulley.

Standard Design: The SPZ-2 pulley follows the standard design for SPZ metric V-belt pulleys. It has a specific groove shape and dimensions to match the corresponding SPZ V-belt.

Material: Standard pulleys like the SPZ-2 can be made from various materials, including cast iron, steel, or aluminum. The choice of material depends on factors such as load requirements, operating conditions, and cost considerations.

Keyway or Set Screw: Depending on the design, the SPZ-2 pulley may include a keyway or set screw mechanism to securely attach it to the shaft. This ensures proper alignment and prevents slippage during operation.

Applications: The SPZ-2 standard pulley is commonly used in various power transmission applications, including machinery, industrial equipment, and automotive systems. It is suitable for systems that require precise speed ratios and torque transfer using SPZ V-belts.

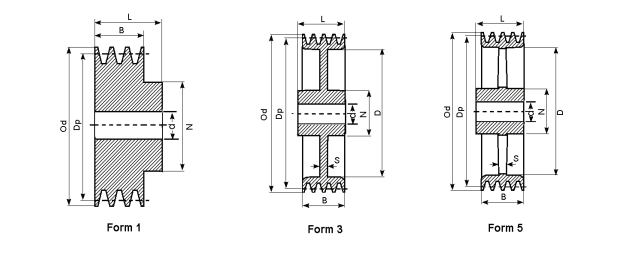

STANDARD BORE PULLEYS SPZ-2


SPZ-2

PART NO. P.D O.D TYPE N L D E B d
spz 50-2 50.0 54.0 1 40 35 - - 28 10
spz 56-2 56.0 60.0 1 45 35 - - 28 10
spz 60-2 60.0 64.0 1 50 35 - - 28 10
spz 63-2 63.0 67.0 1 55 35 - - 28 10
spz 67-2 67.0 71.0 1 60 35 - - 28 10
spz 71-2 71.0 75.0 1 60 35 - - 28 10
spz 75-2 75.0 79.0 1 60 35 - - 28 10
spz 80-2 80.0 84.0 1 60 35 - - 28 10
spz 85-2 85.0 89.0 1 60 35 - - 28 10
spz 90-2 90.0 94.0 1 60 35 - - 28 10
spz 95-2 95.0 99.0 1 60 35 - - 28 15
spz 100-2 100.0 104.0 1 60 35 - - 28 15
spz 106-2 106.0 110.0 1 60 35 - - 28 15
spz 112-2 112.0 116.0 1 60 35 - - 28 15
spz 118-2 118.0 122.0 3 60 35 97 8 28 15
spz 125-2 125.0 129.0 3 60 35 99 8 28 15
spz 132-2 132.0 136.0 3 60 40 105 8 28 15
spz 140-2 140.0 146.0 3 60 40 114 8 28 15
spz 150-2 150.0 154.0 3 60 40 124 8 28 15
spz 160-2 160.0 164.0 3 60 40 134 8 28 15
spz 180-2 180.0 184.0 5 60 40 154 8 28 20
spz 200-2 200.0 204.0 5 60 40 174 8 28 20
spz 224-2 224.0 228.0 5 60 40 198 8 28 20
spz 250-2 250.0 254.0 5 60 40 224 10 28 20
spz 280-2 280.0 284.0 5 65 45 254 10 28 20
spz 315-2 315.0 319.0 5 65 45 289 10 28 20
