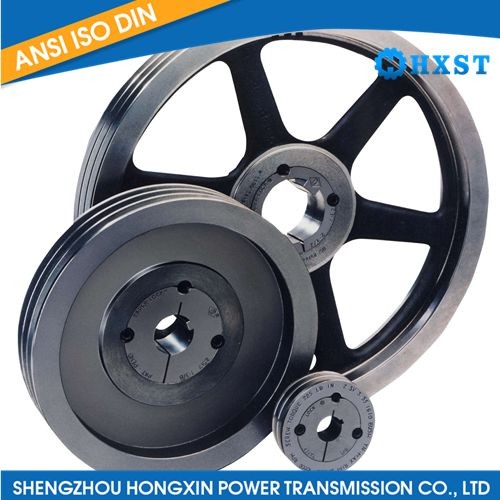

8V Taper Bushed Sheaves

Product Item:HXST-905

Model: 8V Taper Bushed Sheaves

Taper Bushing: The 8V Taper Bushed Sheaves are designed to be used with a taper bushing. The taper bushing is mounted on the sheave hub and provides a secure and accurate fit on the shaft, allowing fo

Material: These sheaves are typically made from durable materials such as cast iron or steel, which provide strength and resistance to wear and corrosion. The material choice may depend on the specifi

Application Versatility: 8V Taper Bushed Sheaves find application in various industries, including manufacturing, HVAC systems, power transmission, and more. They are commonly used in belt-driven syst

Description

8V taper bushed sheaves are a type of pulley used in belt drive systems, specifically designed to accommodate 8V-section belts. These sheaves feature a tapered bore with a matching Taper Bushing that allows for easy installation and removal.

Key features of 8V taper bushed sheaves include:

Taper Bushing System: The sheave is equipped with a tapered bore that matches the taper of a corresponding bushing. This taper bushing system provides a secure and precise fit onto the shaft, ensuring efficient power transmission.

Accommodation of 8V Belts: 8V taper bushed sheaves are specifically designed to work with 8V-section belts. The V-shaped groove on the sheave is deep and wide enough to properly accommodate and grip the 8V belt, minimizing slippage and optimizing power transfer.

Material and Construction: These sheaves are commonly made from durable materials such as cast iron or steel, ensuring strength and durability under varying loads and operating conditions.

Wide Range of Sizes: 8V taper bushed sheaves are available in various sizes and configurations to suit different belt widths and power requirements. This allows for flexibility in selecting the appropriate sheave for specific applications.

Belt Drive System Applications: 8V taper bushed sheaves are commonly used in heavy-duty industrial applications where high power transmission is required. They can be found in applications such as HVAC systems, compressors, conveyors, and large machinery.

When selecting an 8V taper bushed sheave, it's important to consider factors such as the required speed ratio, power transmission requirements, and the appropriate size compatibility with the 8V belt. Proper installation of the taper bushing and regular maintenance, including inspection for wear and correct tensioning of the belt, are crucial for optimal performance and longevity of the sheave and belt drive system.
