35UI Unequal Impact Idlers

Product Item:HXST-1609

Model:35UI Unequal Impact Idlers

Material: These idlers are typically made from high-quality steel or durable synthetic materials such as rubber or polyurethane. The choice of material depends on the specific application requirements

Installation: The 35UI Unequal Impact Idlers can be easily installed in the impact zone of the conveyor system. They are typically mounted on adjustable brackets or frames to ensure proper alignment a

Benefits: The 35UI Unequal Impact Idlers offer several benefits, including reduced belt wear and damage, improved conveyor system performance, increased productivity, and extended belt lifespan. They

Description

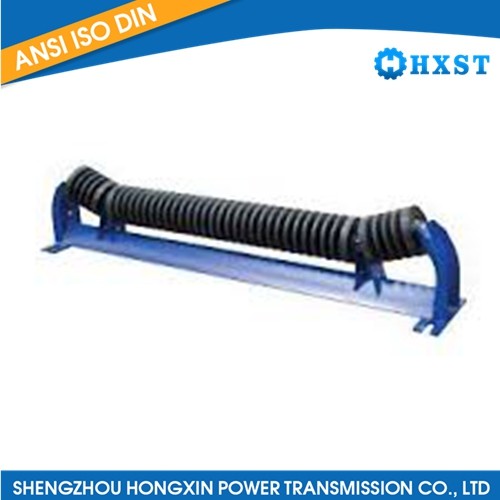

35UI Unequal Impact Idlers

The 35UI Unequal Impact Idlers are a type of idler roller commonly used in conveyor systems. These idlers are designed to handle uneven loads and provide support and guidance to the conveyor belt.

Here are some key features and characteristics of the 35UI Unequal Impact Idlers:

Unequal Roll Diameter: The 35UI idlers have a larger roll diameter on one end compared to the other, which helps to reduce the impact force when the conveyor belt receives uneven loads or experiences shock loading. This design feature minimizes the potential damage to both the belt and the idler itself.

Robust Construction: These idlers are typically constructed with heavy-duty materials such as steel, ensuring durability and long-lasting performance even under demanding conditions. The robust construction enables them to withstand the rigors of heavy loads and harsh environments.

Impact Beds: The 35UI idlers often work in conjunction with impact beds, which are special support structures located underneath the idlers. Impact beds absorb the impact forces generated by heavy or irregularly shaped materials, further reducing the stress on the idlers and the conveyor belt.

Sealed Bearings: To enhance reliability and reduce maintenance requirements, the 35UI idlers are equipped with sealed bearings. Sealed bearings protect against dust, debris, and moisture, prolonging the service life of the idlers and minimizing downtime.

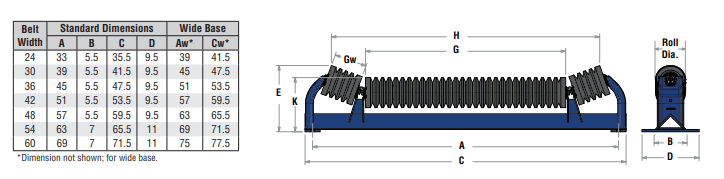

Various Configurations: The 35UI Unequal Impact Idlers come in various configurations to suit different conveyor system requirements. They are available in different roll diameters, widths, and trough angles to accommodate specific load capacities and belt widths.

Overall, the 35UI Unequal Impact Idlers are designed to minimize the impact of uneven loads on conveyor belts, ensuring smooth operation and extending the lifespan of the conveyor system.
