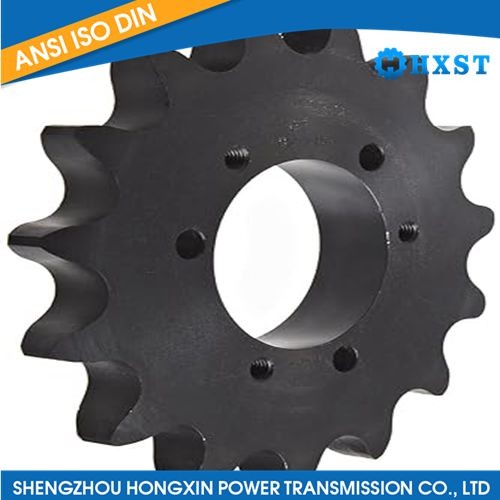

60B-1 Sprockets With Split Taper Bushing
  1. 60B-1 Sprockets With Split Taper Bushing

60B-1 Sprockets With Split Taper Bushing

Product Item:HXPT-111

Model:60B-1 Sprockets With Split Taper Bushing

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

60B-1 Sprockets With Split Taper Bushing , split taper bushing types , 60b sprocket , sprocket taper lock bushing
Send InquiryLive chat

Description

60B-1 Sprockets With Split Taper Bushing is yet another type of sprocket commonly used in power transmission systems. Like the previously mentioned sprockets, it is designed to work in conjunction with a split taper bushing for easy installation and removal from the shaft.

Here are some key features of the 60B-1 Sprockets With Split Taper Bushing:

Type: 60B-1
Number of teeth: 60
Pitch diameter: Varies depending on the specific configuration
Material: Typically constructed from high-quality steel or other durable materials to ensure strength and durability.
Tooth profile: Designed to effectively engage with a compatible chain, facilitating smooth and efficient power transmission.
Split taper bushing: Enables convenient mounting and dismounting from the shaft without the need for specialized tools. The split taper design ensures a secure fit on the shaft, minimizing slippage and ensuring reliable performance.
Application: These sprockets are commonly used in various industrial applications where accurate power transmission is required, such as conveyor systems, machinery, and power transmission equipment.
