Product Item:HXST-043

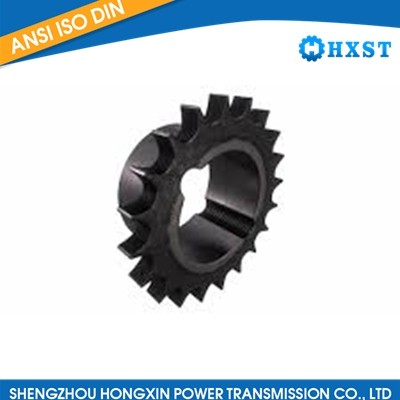

Model: 06B-1 Taper lock Sprocket
Material: C45, stainless steel, etc.
Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc
Package:Standard export case, individual package (neutral or colorbox) available.
|
No. of teeth |
pitch circle | tip circle | hub-dia. |
total length |
for |
| z | d | do | ND | L | bush |
| 17 | 51,83 | 55,3 | 45 | 22 | 1008 |
| 18 | 54,85 | 58,3 | 45 | 22 | 1008 |
| 19 | 57,87 | 61,3 | 45 | 22 | 1008 |
| 20 | 60,89 | 64,3 | 46 | 22 | 1008 |
| 21 | 63,91 | 68,0 | 46 | 22 | 1008 |
| 22 | 66,93 | 71,0 | 50 | 22 | 1108 |
| 23 | 59,95 | 73,5 | 63 | 25 | 1210 |
| 24 | 72,97 | 77,0 | 63 | 25 | 1210 |
| 25 | 76,02 | 80,0 | 63 | 25 | 1210 |
| 26 | 79,02 | 83,0 | 63 | 25 | 1210 |
| 27 | 82,02 | 86,0 | 63 | 25 | 1210 |
| 28 | 85,07 | 89,0 | 63 | 25 | 1210 |
| 30 | 91,12 | 94,7 | 63 | 25 | 1210 |
| 38 | 115,35 | 119,5 | 70 | 25 | 1210 |
| Material: cast iron (GG-22) | |||||
| 45 | 136,55 | 140,7 | 70 | 25 | 1210 |
| 57 | 172,91 | 176,9 | 70 | 25 | 1210 |
| 76 | 230,49 | 234,9 | 70 | 25 | 1210 |
| 95 | 288,08 | 292,5 | 80 | 25 | 1210 |
| 114 | 345,68 | 349,5 | 80 | 38 | 1215 |
