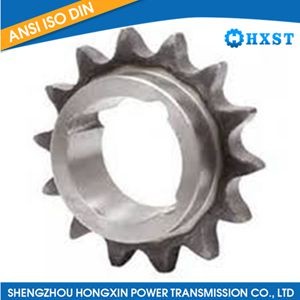

40B-1 14T ANSI Simplex Taper lock Sprocket
  1. 40B-1 14T ANSI Simplex Taper lock Sprocket

40B-1 14T ANSI Simplex Taper lock Sprocket

Product Item:HXPT-081

Model: 40B-1 Simplex Taper lock Sprocket

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

40B-1 14T ANSI Simplex Taper lock Sprocket , 40b14 sprocket , spline taper lock bushing
Send InquiryLive chat

Description



40TL14.1008 Sprocket

for 1008 Taper Bushing

No.40 ANSI Sprocket

14 Teeth

For #40 Single Strand Chain with

1/2 Inch Pitch

5/16 Inch Roller Width

0.313 Inch Roller Diameter

0.283 Inch Sprocket Tooth Width(B1)

2.49 Inch Outside Diameter (Approximate)

2.247 Inch Pitch Diameter

1.81 Inch Hub Diameter(C)

0.88 Inch Total Length Through Bore(L)
