40A-1 Plate Wheel Sprocket

Description

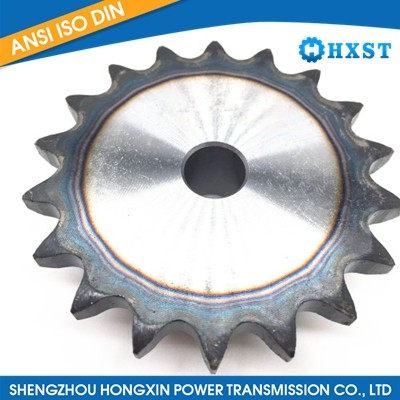

40A-1 plate wheel sprocket is a specific type of sprocket that features a plate wheel design. Here are some key features of the 40A-1 plate wheel sprocket:

Plate Wheel Design: The "plate wheel" designation indicates that the sprocket has a design where the teeth are formed directly on a flat plate. This design allows for easy attachment to various equipment or machinery.

40A-1 Designation: The "40A-1" designation specifies the specific model or part number for the plate wheel sprocket. It may include information about the tooth count, pitch, bore size, and other relevant specifications.

Teeth Configuration: The 40A-1 plate wheel sprocket will have teeth designed to match the pitch and width of the corresponding roller chain. The tooth profile and configuration ensure proper engagement and smooth operation with the chain.

Material: Plate wheel sprockets like the 40A-1 can be made from various materials, such as carbon steel or stainless steel. The choice of material depends on factors such as load requirements, environmental conditions, and cost considerations.

Applications: Plate wheel sprockets are commonly used in power transmission systems where precise positioning or easy mounting is required. The 40A-1 plate wheel sprocket can be utilized in various applications such as machinery, conveyors, or industrial equipment.

Product details

(Dimension : mm)

Related Products

ANSI 40A-3 23T Triplex Plate wheel chain sprocket

ANSI 35A-3 21T Plate wheels Triplex sprocket

ANSI 40A-1 22T Plate wheel chain sprocket

LA6 LA7 Locking Ring

ANSI 35A-2 16T Plate wheels double Sprocket

60A weld on roller chain sprocket

Sprocket No.		Outside Dia. Do	Pitch Dia. Dp	Bore Dia. d		Weight (kg)	Material	Teeth
Type	Teeth			Stock Bore	Min.
K40A	10	46	41.10	9.5	11.5	0.05	Mild Steel	10
	11	51	45.08	10.5	12.5	0.09		11
	12	55	49.07	11.5	13.5	0.10		12
	13	59	53.07	13.5	15.5	0.12		13
	14	63	57.07	13.5	15.5	0.14		14
	15	67	61.08	13.5	15.5	0.16		15
	16	71	65.10	13.5	15.5	0.18		16
	17	76	69.12	13.5	15.5	0.20		17
	18	80	73.14	13.5	15.5	0.23		18
	19	84	77.16	13.5	15.5	0.26		19
	20	88	81.18	14	16	0.29		20
	21	92	85.21	14	16	0.30		21
	22	96	89.24	14	16	0.35		22
	23	100	93.27	14	16	0.38		23
	24	104	97.30	14	16	0.40		24
	25	108	101.33	14	16	0.45		25
	26	112	105.36	14	16	0.49		26
	27	116	109.40	14	16	0.50		27
	28	120	113.43	14	16	0.56		28
	29	124	117.46	14	16	0.60		29
	30	128	121.50	14	16	0.63		30
	31	133	125.53	14	16	0.65		31
	32	137	129.57	14	16	0.70		32
	33	141	133.61	14	16	0.75		33
	34	145	137.64	14	16	0.80		34
	35	149	141.68	14	16	0.85		35
	36	153	145.72	16	18	0.90		36
	37	157	149.75	16	18	0.99		37
	38	161	153.79	16	18	1.00		38
	39	165	157.83	16	18	1.15		39
	40	169	161.87	16	18	1.20		40
	41	173	165.91	16	18	1.20		41
	42	177	169.95	16	18	1.25		42
	43	181	173.98	16	18	1.30		43
	44	185	178.02	16	18	1.35		44
	45	189	182.06	16	18	1.40		45
	46	193	186.10	16	18	1.49		46
	47	197	190.14	16	18	1.58		47
	48	201	194.18	16	18	1.63		48
	49	205	198.22	16	18	1.73		49
	50	209	202.26	16	18	1.80		50
	51	214	206.30	16	18	1.88		51
	52	218	210.34	16	18	1.93		52
	53	222	214.38	16	18	1.98		53
	54	226	218.42	16	18	2.00
