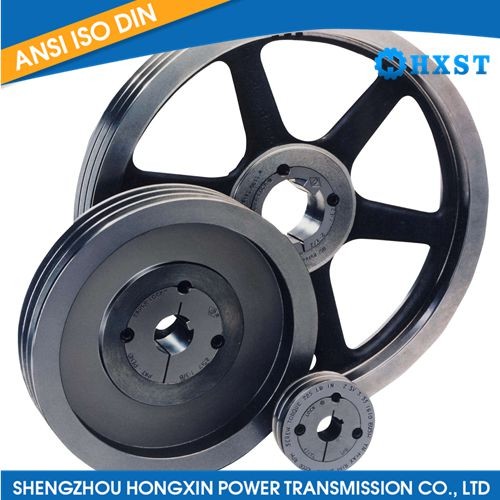

3V Taper Bushed Sheaves
Product Item:HXST-903
Model: 3V Taper Bushed Sheaves
Material: C45, ETC
Surface treatment: Black
Delivery period: 30-60day
Description
3V taper bushed sheaves are a type of pulley used in belt drive systems, specifically designed to accommodate 3V-section belts. These sheaves feature a tapered bore with a matching Taper Bushing that allows for easy installation and removal.
Key features of 3V taper bushed sheaves include:

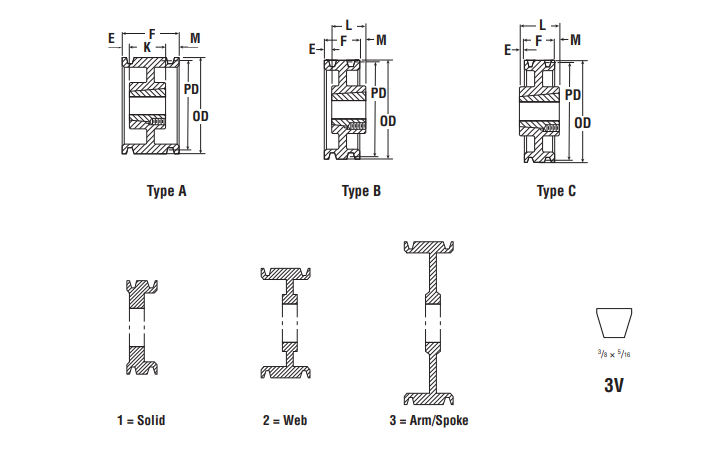

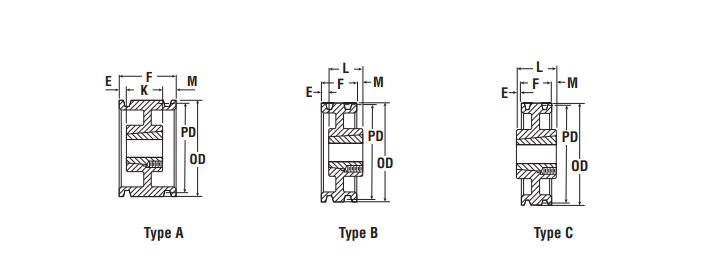

Taper Bushing System: The sheave is equipped with a tapered bore that matches the taper of a corresponding bushing. This taper bushing system provides a secure and precise fit onto the shaft, ensuring efficient power transmission.
Accommodation of 3V Belts: 3V taper bushed sheaves are specifically designed to work with 3V-section belts. The V-shaped groove on the sheave is deep and wide enough to properly accommodate and grip the 3V belt, minimizing slippage and optimizing power transfer.
Material and Construction: These sheaves are commonly made from durable materials such as cast iron or steel, ensuring strength and durability under varying loads and operating conditions.

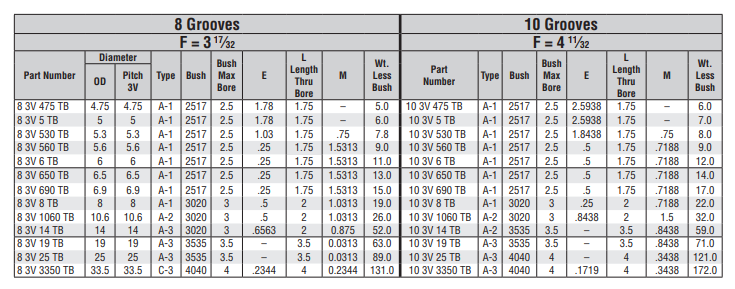

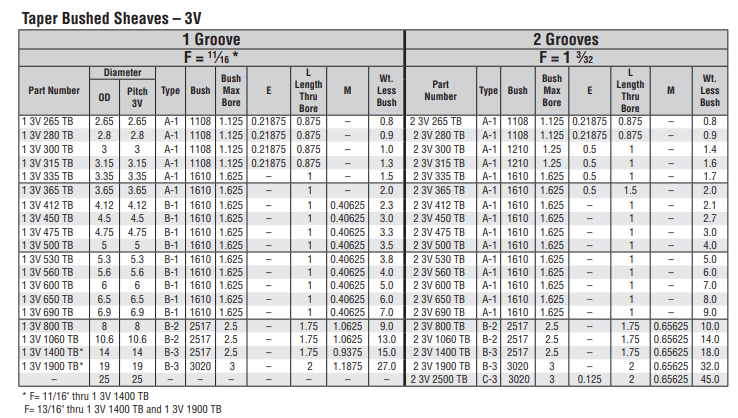

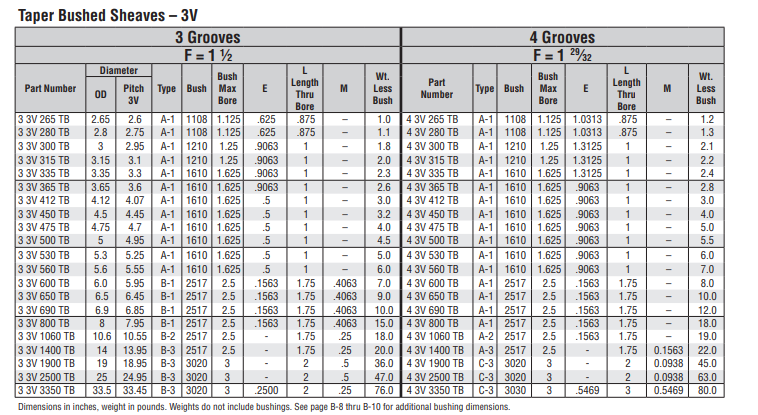

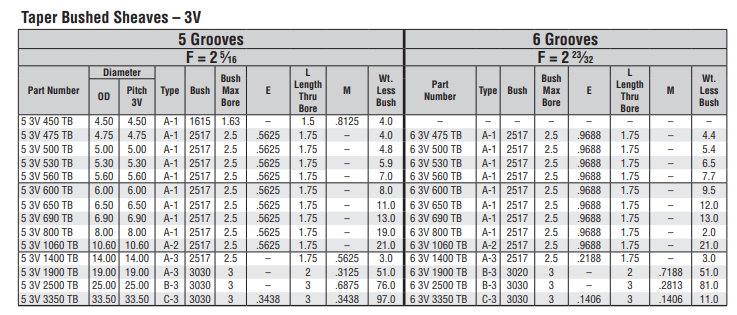

Wide Range of Sizes: 3V taper bushed sheaves are available in various sizes and configurations to suit different belt widths and power requirements. This allows for flexibility in selecting the appropriate sheave for specific applications.
Belt Drive System Applications: 3V taper bushed sheaves are commonly used in industrial applications where moderate power transmission is required. They can be found in applications such as HVAC systems, fans, pumps, compressors, and machinery.
When selecting a 3V taper bushed sheave, it's important to consider factors such as the required speed ratio, power transmission requirements, and the appropriate size compatibility with the 3V belt. Proper installation of the taper bushing and regular maintenance, including inspection for wear and correct tensioning of the belt, are crucial for optimal performance and longevity of the sheave and belt drive system
