Product Item:HXPT-089

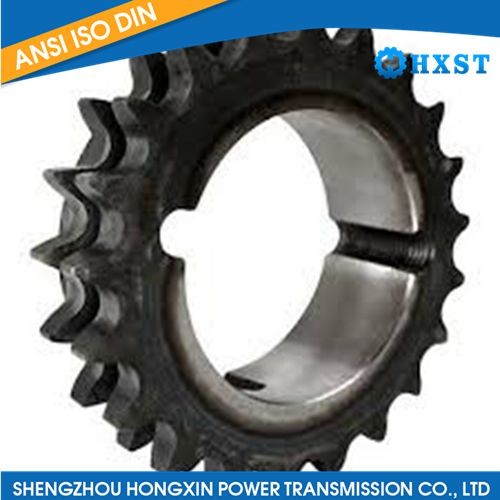

Model: 35B-2 Duplex Taper lock Sprocket
Material: C45, stainless steel, etc.
Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc
Package:Standard export case, individual package (neutral or colorbox) available.
D35TL18H.1008 Sprocket
for 1008 Taper Lock Bush No.35-2 ANSI Sprocket
18 Hard Teeth
For #35 Double Strand Chain with
3/8 Inch Pitch
3/16 Inch Roller Width
0.200 Inch Roller Diameter
0.169 Inch Sprocket Tooth Width(B1)
0.561 Inch Width Accross Sprocket Teeth(B2)
2.352 Inch Outside Diameter (Approximate)
2.16 Inch Pitch Diameter
1.83 Inch Hub Diameter(C)
0.88 Inch Total Length Through Bore(L)
