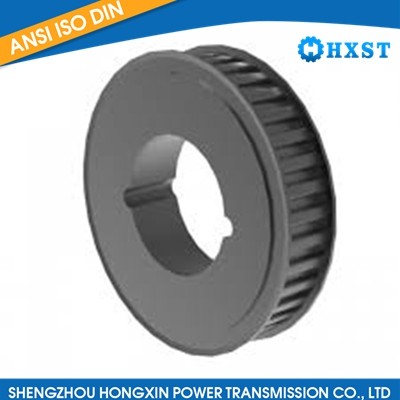

HTP 14M-85 Taper Bore Timing Pulley
  1. HTP 14M-85 Taper Bore Timing Pulley

HTP 14M-85 Taper Bore Timing Pulley

Product Item:HXST-280

Model:HTP 14M-85 Taper Bore Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

HTP 14M-85 Taper Bore Timing Pulley , htd 14m pulley , taper bore pulley
Send InquiryLive chat

Description

HTP 14M-85 Taper Bore Timing Pulley is a specific type of timing pulley used in power transmission systems. Here's some information about this particular pulley:

Size: The designation "14M-85" indicates the pitch size and belt length. In this case, it refers to a 14mm pitch size and a belt length of 85 teeth.
Taper Bore: Similar to the previous examples, the taper bore feature means that the pulley has a tapered inner bore, allowing for easy installation and removal using a locking device.
Material: The material used for this timing pulley can vary but is typically made from aluminum, steel, or other durable materials depending on the application requirements.
Timing Belt Compatibility: The 14M-85 designation corresponds to a specific tooth profile and pitch size, which must match with the corresponding timing belt for proper operation and synchronization in the power transmission system.
Application: Timing pulleys are commonly used in various industrial applications such as conveyors, robotics, printing machinery, and CNC machines where precise motion control and synchronization are essential.


14M
PITCH - 14 mm
FOR BELT WIDTH - 85 mm

Code Type Material Teeth Buss Hole max dp de Df Dm Di F L R n◦ flange
TL 28 14M 85 18F St 28 2517 60 124,78 122,12 127 98 102 45 28,5 400
TL 30 14M 85 18F St 30 2517 60 133,69 130,99 138 100 102 45 28,5 401
TL 32 14M 85 18F St 32 2517 60 142,60 139,88 154 108 102 45 28,5 403
TL 34 14M 85 18F St 34 2517 60 151,52 148,79 160 110 102 45 28,5 404
TL 36 14M 85 18F St 36 3020 75 160,43 157,68 168 125 102 51 25,5 405
TL 38 14M 85 18F St 38 3020 75 169,34 166,60 183 130 102 51 25,5 406
TL 40 14M 85 18F St 40 3020 75 178,25 175,49 188 138 102 51 25,5 407
TL 44 14M 85 18F St 44 3030 75 196,08 193,28 211 155 102 76 13 411
TL 48 14M 85 18F St 48 3030 75 213,90 211,11 226 170 102 76 13 412
TL 56 14M 85 18F GG 56 3525 90 249,55 246,76 256 210 102 65 18,5 416
TL 64 14M 85 19F GG 64 3525 90 285,21 282,41 296 190 240 102 65 18,5 418
TL 72 14M 85 19 GG 72 3525 90 320,86 318,06 190 280 102 65 18,5
TL 80 14M 85 20 GG 80 3525 90 356,51 353,71 190 315 102 65 18,5
TL 90 14M 85 20 GG 90 3525 90 401.07 398.28 190 360 102 65 18,5
TL 112 14M 85 20 GG 112 3525 90 499.11 496.32 190 457 102 65 18,5
TL 144 14M 85 20 GG 144 3525 90 641.71 638.92 190 600 102 65 18,5
TL 168 14M 85 20 GG 168 3525 90 748.66 745.87 190 706 102 65 18,5
TL 192 14M 85 20 GG 192 4040 100 855.62 852.82 230 813 102 102
