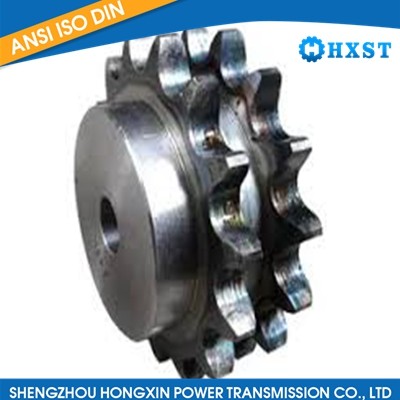

35B-2 ASA Duplex Sprocket
  1. 35B-2 ASA Duplex Sprocket

35B-2 ASA Duplex Sprocket

Product Item:HXST-032

Model: 35B-2 ASA Duplex Sprocket

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

35b-2 asa duplex sprocket , 72 tooth sprocket 35 chain , 35b20 sprocket
Send InquiryLive chat

Description

Duplex-sprockets ASA35-2

Kettenrad 06B-2 DIN 8187
  • ISO-No.: sprockets ASA35-2 (3/8“ x 3/16“)
  • pitch: 9,525 mm
  • inner width: 4,77 mm
  • Roller-dia: 5,08 mm
  • tooth width bf2 14,4 mm
  • ba 1,2 mm (radius width)
  • rx 10 mm (min. tooth radius)
No. of teeth pitch circle tip circle hub pilot bore bore total weight
Ø Ø Ø Ø max. length approx
z do dk dn d1 d2 L kg
13 39,79 43,0 28 10 18 25 0,16
14 42,80 46,3 31 10 20 25 0,20
15 45,81 49,3 34 10 22 25 0,24
16 48,82 52,3 37 12 22 30 0,27
17 51,83 55,3 40 12 25 30 0,32
18 54,85 58,3 43 12 27 30 0,38
19 57,87 61,3 46 12 28 30 0,42
20 60,89 64,3 49 12 30 30 0,48
21 63,91 68,0 52 12 32 30 0,52
22 66,93 71,0 55 12 34 30 0,58
23 69,95 73,5 58 12 36 30 0,64
24 72,97 77,0 61 12 38 30 0,71
25 76,00 80,0 64 12 40 30 0,79
26 79,02 83,0 67 12 43 30 0,87
27 82,05 86,0 70 12 44 30 0,94
28 85,07 89,0 73 12 45 30 1,03
