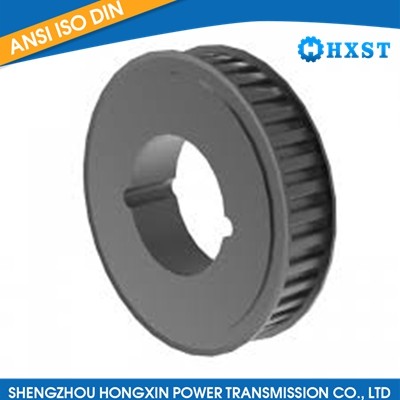

HTP 8M-20 Taper Bore Timing Pulley
  1. HTP 8M-20 Taper Bore Timing Pulley

HTP 8M-20 Taper Bore Timing Pulley

Product Item:HXST-275

Model:HTP 8M-20 Taper Bore Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

HTP 8M-20 Taper Bore Timing Pulley , taper lock timing belt pulley , taper bore pulley , taper lock timing pulley
Send InquiryLive chat

Description

HTP 8M-20 Taper Bore Timing Pulley is a specific type of timing pulley used in power transmission systems. Here's some information about this particular pulley:

Size: The designation "8M-20" indicates the pitch size and belt length. In this case, it refers to an 8mm pitch size and a belt length of 20 teeth.
Taper Bore: As mentioned in previous examples, the taper bore feature means that the pulley has a tapered inner bore, allowing for easy installation and removal using a locking device.
Material: The material used for this timing pulley can vary but is typically made from aluminum, steel, or other durable materials depending on the application requirements.
Timing Belt Compatibility: The 8M-20 designation corresponds to a specific tooth profile and pitch size, which must match with the corresponding timing belt for proper operation and synchronization in the power transmission system.
Application: Timing pulleys are commonly used in various industrial applications such as conveyors, robotics, printing machinery, and CNC machines where precise motion control and synchronization are essential.


8M
PITCH - 8 mm
FOR BELT WIDTH - 20 mm

Code Type Material Teeth Buss Hole max dp de Df Dm Di F L R n◦ flange
TL 22 8M 20 16F St 22 1008 25 56,02 54,65 60 37 28 22 6 308
TL 24 8M 20 16F St 24 1108 25 61,11 59,74 66 44 28 22 6 310
TL 26 8M 20 16F St 26 1108 25 66,21 64,84 71 45 28 22 6 311
TL 28 8M 20 16F St 28 1108 25 71,30 70,08 75 50 28 22 6 312
TL 30 8M 20 16F St 30 1108 25 76,39 75,13 83 58 28 22 6 314
TL 32 8M 20 16F St 32 1610 42 81,49 80,16 87 63 28 25 3 315
TL 34 8M 20 16F St 34 1610 42 86,58 85,21 91 64 28 25 3 316
TL 36 8M 20 16F St 36 1610 42 91,67 90,30 98 68 28 25 3 319
TL 38 8M 20 16F St 38 1610 42 96,77 95,39 103 72 28 25 3 320
TL 40 8M 20 16F St 40 1610 42 101,86 100,49 106 76 28 25 3 321
TL 44 8M 20 10F St 44 2012 50 112,05 110,67 119 92 28 32 4 325
TL 48 8M 20 10F St 48 2012 50 122,23 120,86 127 96 28 32 4 327
TL 56 8M 20 10F St 56 2012 50 142,60 141,23 148 110 28 32 4 333
TL 64 8M 20 11F St 64 2012 50 162,97 161,60 168 110 137 28 32 4 338
TL 72 8M 20 11F St 72 2012 50 183,35 181,97 192 110 158 28 32 4 340
TL 80 8M 20 11 GG 80 2012 50 203,72 202,35 110 180 28 32 4
TL 90 8M 20 11 GG 90 2012 50 229,18 227,81 110 204 28 32 4
