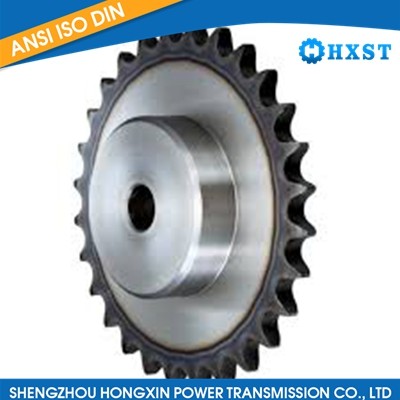

35B-1 ASA Sprocket
  1. 35B-1 ASA Sprocket

35B-1 ASA Sprocket

Product Item:HXST-026

Model: 35B-1 ASA Sprocket

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

35b sprocket , 35b-1 asa sprocket , 35b20 sprocket
Send InquiryLive chat

Description

ASA-simplex sprockets ASA35-1

Kettenräder 04-1
  • ISO-no.: sprockets ASA35-1 (3/8″ x 3/16″)
  • pitch: 9,52 mm
  • inner width: 4,77 mm
  • roller-dia.: 5,08 mm
  • tooth width: bf1 4,3 mm
  • ba 1,2 mm (radius width)
  • rx 10 mm (min. tooth radius)

No. of teeth

pitch circle

tip circle

hub

pilot bore

total

weight

Ø

Ø

Ø

Ø

length

approx

z

d0

dk

dn

d1

L

kg

10 30,82 35,70 20 8 22 0,05
11 33,80 38,69 22 8 25 0,07
12 36,80 41,68 25 8 25 0,10
13 39,80 44,68 28 10 25 0,13
14 42,80 47,68 31 10 25 0,15
15 45,81 50,69 34 10 25 0,18
16 48,82 5,70 38 10 28 0,24
17 51,83 56,72 38 10 28 0,28
18 54,85 59,73 38 10 28 0,30
19 57,87 62,75 46 10 28 0,35
20 60,89 65,77 46 10 28 0,40
21 63,91 68,79 46 10 28 0,44
22 66,93 71,81 52 12 28 0,47
23 69,95 74,83 52 12 28 0,50
24 72,97 77,85 52 12 28 0,60
25 76,00 80,88 58 12 28 0,62
26 79,02 83,90 58 12 28 0,65
27 82,04 86,93 58 12 28 0,69
28 85,07 89,95 60 12 28 0,70
30 91,12 96,00 60 12 28 0,90
