35B-1 24T Simplex Taper lock Sprocket
  1. 35B-1 24T Simplex Taper lock Sprocket

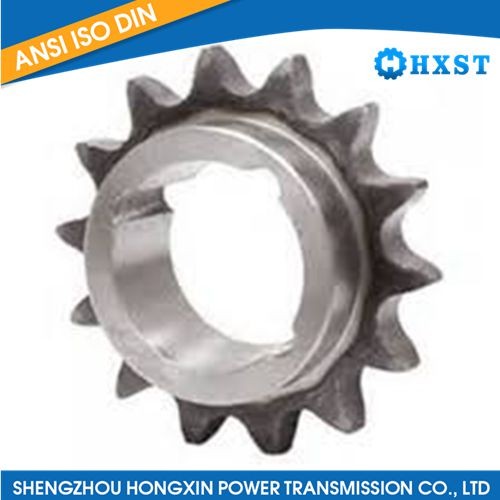

35B-1 24T Simplex Taper lock Sprocket

Product Item:HXPT-080

Model: 35B-1 Simplex Taper lock Sprocket

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

35B-1 24T Simplex Taper lock Sprocket , 35b sprocket , sprocket taper lock bushing , 60btb17
Send InquiryLive chat

Description


35TL24.1210 Sprocket

for 1210 Taper Bushing

No.35 ANSI Sprocket

24 Teeth

For #35 Single Strand Chain with

3/8 Inch Pitch

3/16 Inch Roller Width

0.200 Inch Roller Diameter

0.169 Inch Sprocket Tooth Width(B1)

3.074 Inch Outside Diameter (Approximate)

2.873 Inch Pitch Diameter

2.44 Inch Hub Diameter(C)

1 Inch Total Length Through Bore(L)
