120B-2 ASA Duplex Sprocket
  1. 120B-2 ASA Duplex Sprocket

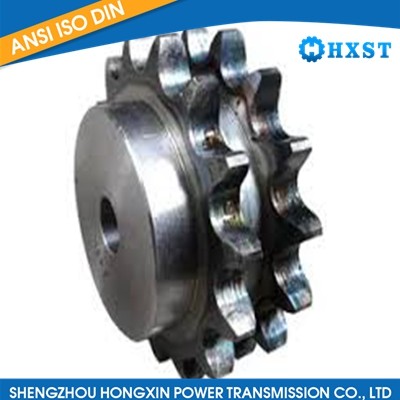

120B-2 ASA Duplex Sprocket

Product Item:HXST-038

Model: 120B-2 ASA Duplex Sprocket

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

120b-2 asa duplex sprocket , d120b20 , 120 double roller chain
Send InquiryLive chat

Description

Duplex-sprockets ASA120-2

Zweifach-Kettenräder ASA120-2 (24A-2) nach DIN 8188
  • ISO-Nr.: ASA120-2 24A-2 (1 1/2“ x 1″)
  • pitch: 38,1 mm
  • inner width: 25,4 mm
  • Roller-dia.: 22,22 mm
  • tooth width bf2: 69 mm
  • ba 4,8 mm (radius width)
  • rx 40,5 mm (min. tooth radius)
No. of teeth pitch circle tip circle hub pilot bore bore total weight
Ø Ø Ø Ø max. length approx
Material steel/C45 do dk dn d1 d2 L kg
12 147,20 162,0 102 25 62 100 8,28
13 159,20 174,2 114 25 70 100 10,13
14 171,20 186,2 128 25 80 100 12,24
15 183,30 198,2 132 25 82 100 14,08
