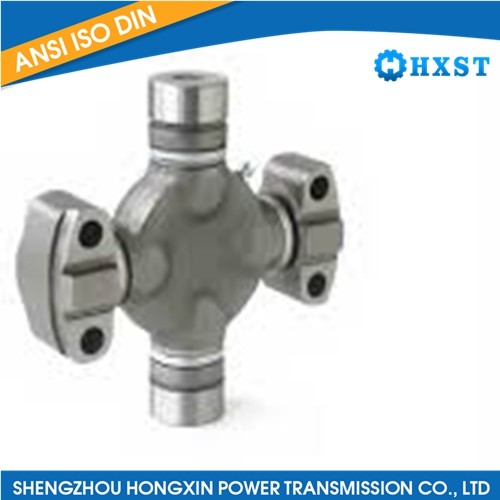

2 Wing & 2 Plain Universal Joint

Product Item:HXST-1811

Model:2 Wing & 2 Plain Universal Joint

Material: Typically made from high-strength materials such as alloy steel or stainless steel to ensure durability and strength

Maintenance: Regular inspection and lubrication are recommended to ensure optimal performance and longevity of the universal joint

Installation: The universal joint is typically installed by connecting the wings and plain arms to the corresponding shafts using appropriate fasteners

Description

A 2-wing and 2-plain universal joint, also known as a Hooke's joint or Oldham coupling, is a specific type of mechanical joint used to transmit rotational motion between two shafts that are not aligned with each other. Here's an explanation of its components:

Wing: The wings, also called yokes or forks, are the main components of the universal joint. They consist of fork-like structures with two arms that hold the bearings.

Plain Bearings: The plain bearings are cylindrical components that fit into the arms of the wings. They allow for smooth rotation and flexibility within the joint.

The 2-wing and 2-plain universal joint operates by connecting two shafts at right angles to each other while allowing for angular misalignment and axial movement. The two wings are connected by a cross-shaped center block, and the plain bearings enable rotational movement between the shafts.

This type of universal joint is commonly used in applications where a small amount of angular misalignment is required, such as in automotive steering systems, drive shafts, and various machinery. It provides flexibility, smooth operation, and efficient power transmission between non-aligned shafts.

It's important to note that proper lubrication and maintenance are necessary to ensure the longevity and optimal performance of the 2-wing and 2-plain universal joint.
