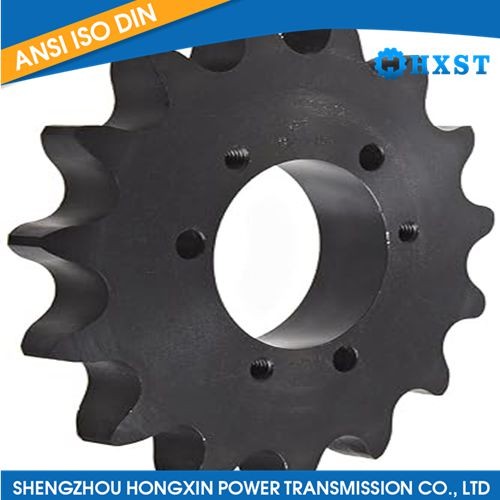

140B Single Type QD Bushing Sprocket

Product Item:HXST-412

Model: 140B Single Type QD Bushing Sprocket

Maintenance: Regular inspection of the sprocket teeth and QD bushing for wear, damage, or misalignment is recommended to ensure optimal performance and prolong their lifespan. Proper lubrication may a

Installation: Installing the 140B Single Type QD Bushing Sprocket involves mounting it onto the shaft using the QD bushing. The QD bushing allows for easy installation and removal of the sprocket when

Application Versatility: The 140B Single Type QD Bushing Sprocket finds application in various industries, including manufacturing, agriculture, mining, and more. It is commonly used in power transmis

Description

140B Single Type QD Bushing Sprocket is a specific type of sprocket designed to work with a Single Type QD (Quick Detachable) bushing. It is commonly used in belt drive systems for efficient power transmission.

Key features of the 140B Single Type QD Bushing Sprocket include:

Sprocket Design: The sprocket has teeth around its circumference that engage with the teeth of a corresponding belt, enabling the transfer of rotational motion and torque.

Single Type QD Bushing: The sprocket is specifically designed to work with a Single Type QD bushing. The QD bushing provides a secure and precise fit onto the shaft, allowing for easy installation and removal of the sprocket.

Material and Construction: The 140B Single Type QD Bushing Sprocket is typically made from durable materials such as steel or cast iron, ensuring strength and durability under varying loads and operating conditions.

Wide Range of Sizes: The 140B sprocket is available in various sizes and configurations to accommodate different belt widths and power requirements. This allows for flexibility in selecting the appropriate sprocket for specific applications.

Belt Drive System Applications: The 140B Single Type QD Bushing Sprocket is commonly used in industrial applications where reliable power transmission is required. It can be found in applications such as conveyors, machinery, and other belt-driven systems.

When selecting a 140B Single Type QD Bushing Sprocket, it's important to consider factors such as the number of teeth, pitch diameter, bore size compatibility with the Single Type QD bushing, and the belt type and size requirements. Proper installation of the sprocket and regular maintenance, including inspection for wear and correct tensioning of the belt, are crucial for optimal performance and longevity of the sprocket and belt drive system.
