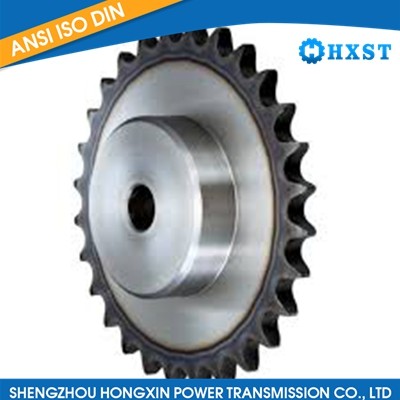

Product Item:HXST-031
Model: 100B-1 ASA Sprocket
Material: C45, stainless steel, etc.
Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc
Package:Standard export case, individual package (neutral or colorbox) available.
|
No. of teeth |
pitch circle |
tip circle |
hub |
pilot bore |
bore |
total |
weight |
|
Ø |
Ø |
Ø |
Ø |
max. |
length |
approx |
|
|

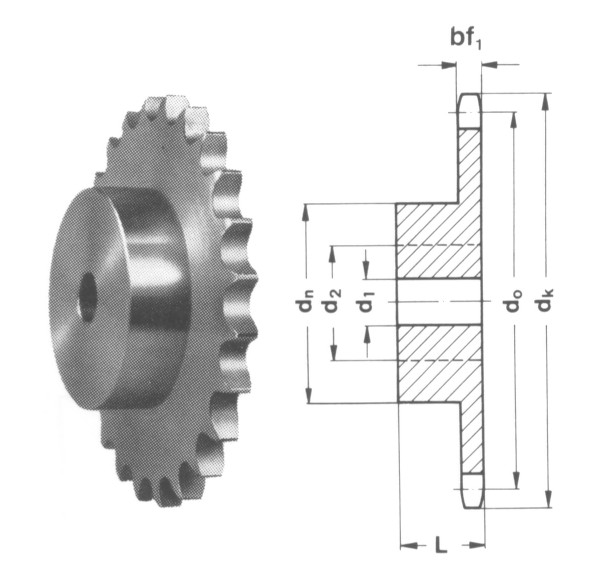

z |
d0 |
dk |
dn |
d1 |
d2 |
L |
kg |
|
Material steel/C45 |
|||||||
|
8 |
82,96 |
98,1 |
53 | 20 | 34 | 40 | 0,95 |
|
9 |
92,8 |
108,0 |
63 | 20 | 41 | 40 | 1,20 |
|
10 |
102,7 |
117,9 |
70 | 20 | 43 | 40 | 1,60 |
|
11 |
112,68 |
127,8 |
77 | 20 | 47 | 45 | 2,15 |
|
12 |
122,7 |
137,8 |
88 | 20 | 54 | 45 | 2,73 |
|
13 |
132,7 |
147,8 |
98 | 20 | 61 | 45 | 3,30 |
|
14 |
142,7 |
157,8 |
108 | 20 | 68 | 45 | 3,90 |
|
15 |
152,7 |
167,9 |
118 | 20 | 75 | 45 | 4,65 |
|
16 |
162,8 |
177,9 |
120 | 25 | 75 | 50 | 5,40 |
|
17 |
172,8 |
187,9 |
120 | 25 | 75 | 50 | 5,80 |
|
18 |
182,9 |
198,0 |
120 | 25 | 75 | 50 | 6,20 |
|
19 |
192,9 |
208,1 |
120 | 25 | 75 | 50 | 6,60 |
|
20 |
203,0 |
218,1 |
120 | 25 | 75 | 50 | 7,05 |
|
21 |
213,0 |
228,2 |
140 | 25 | 90 | 55 | 9,10 |
|
22 |
223,1 |
238,3 |
140 | 25 | 90 | 55 | 9,40 |
|
23 |
233,2 |
248,3 |
140 | 25 | 90 | 55 | 10,00 |
|
24 |
243,2 |
258,4 |
140 | 25 | 90 | 55 | 10,15 |
|
25 |
253,3 |
268,5 |
140 | 25 | 90 | 55 |
10,20 |
