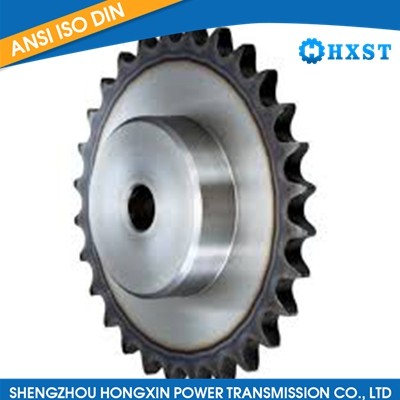

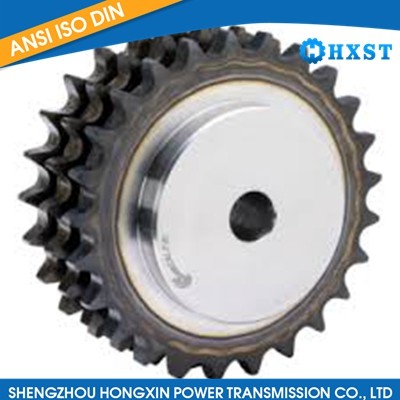

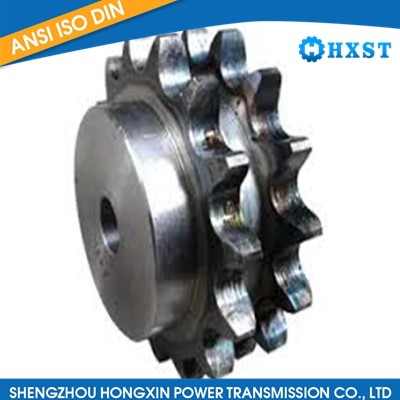

08B 1-2-3 Chain Sprocket

Description

The term "08B 1-2-3 Chain Sprocket" refers to a specific type of sprocket that is designed to work with an 08B roller chain. Here's a breakdown of the terminologies:

"08B": This is the chain size or pitch designation. It indicates that the sprocket is compatible with an 08B roller chain, which has a pitch of 0.500 inches (12.7mm). The pitch refers to the distance between the centers of adjacent chain pins.

"1-2-3": This typically represents the number of teeth on the sprocket. In this case, it suggests that the sprocket has three different sections with varying tooth counts. For example, it might have one section with one tooth, another section with two teeth, and a third section with three teeth. This type of sprocket configuration can be used in applications where different speeds or ratios are required.

So, an "08B 1-2-3 Chain Sprocket" would be a sprocket specifically designed for use with an 08B roller chain, featuring multiple sections with different tooth counts.

SPROCKETS 1/2" X 5/16" FOR CHAIN 08B-1-2-3

Z	De	Dp	ONE ROW			TWO ROWS			THREE ROWS
			d	D	H	d	D	H	d	D	H
8	37.2	33.18	20	10	25	20	10	32	20	10	46
9	41.0	37.13	24	10	25	24	10	32	24	12	46
10	45.2	41.10	26	10	25	28	10	32	28	12	46
11	48.7	45.07	29	10	25	32	12	35	32	16	50
12	53.0	49.07	33	10	28	35	12	35	35	16	50
13	57.4	53.06	37	10	28	38	12	35	38	16	50
14	61.8	57.07	41	10	28	42	12	35	42	16	50
15	65.5	61.09	45	10	28	46	12	35	46	16	50
16	69.5	65.10	50	12	28	50	14	38	50	16	50
17	73.6	69.11	52	12	28	54	14	38	54	16	50
18	77.8	73.14	56	12	28	58	14	38	58	16	50
19	81.7	77.16	60	12	28	62	14	38	62	16	50
20	85.8	81.19	64	12	28	66	14	40	66	16	50
21	89.7	85.22	68	14	28	70	16	40	70	20	55
22	93.8	89.24	70	14	28	70	16	40	70	20	55
23	98.2	93.27	70	14	28	70	16	40	70	20	55
24	101.8	97.29	70	14	28	75	16	40	75	20	55
25	105.8	101.33	70	14	28	80	16	40	80	20	55
26	110.0	105.36	70	16	30	85	20	40	85	20	55
27	114.0	109.40	70	16	30	85	20	40	85	20	55
28	118.0	113.42	70	16	30	90	20	40	90	20	55
29	122.0	117.46	80	16	30	95	20	40	95	20	55
30	126.1	121.50	80	16	30	100	20	40	100	20	55
31	130.2	125.54	90	16	30	100	20	40	110	20	55
32	134.3	129.56	90	16	30	100	20	40	110	20	55
33	138.4	133.60	90	16	30	100	20	40	110	20	55
34	142.6	137.64	90	16	30	100	20	40	110	20	55
35	146.7	141.68	90	16	30	100	20	40	110	20	55
36	151.0	145.72	90	20	35	100	20	40	120	25	55
37	154.6	149.76	90	20	35	100	20	40	120	25	55
38	158.6	153.80	90	20	35	100	20	40	120	25	55
39	162.7	157.83	90	20	35	100	20	40	120	25	55
40	166.8	161.87	90	20	35	100	20	40	120	25	55
42	176,5	169,95	88	20	42	108	20	55
45	188,6	182,07	88	20	42	108	20	55	120	25	68
46	192,6	186,10	88	20	42	108	20	55
48	200,7	194,18	88	20	42	108	Related Products ANSI 40A-2 26T Double Plate wheel chain sprocket ANSI 40A-3 34T Triplex Plate wheel chain sprocket ANSI 35B-2 23T Double Chain Sprocket Double volleyball slewing bearing (02 series)-external gear NK 50B Finished Bore Sprocket ANSI 35A-3 16T Plate wheels Triplex sprocket
