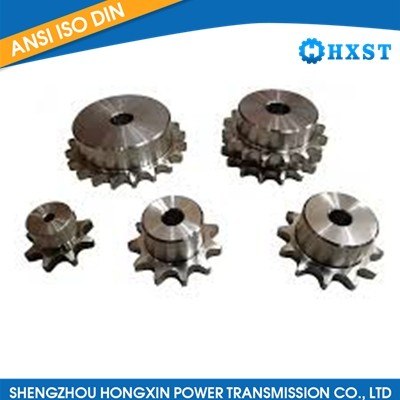

06B 08B 10B 12B 16B Stainless steel Sprocket

Stainless steel sprockets are sprockets made from stainless steel material. The numbers 06B, 08B, 10B, 12B, and 16B refer to the pitch sizes of the sprockets. Each number represents a specific size or pitch measurement used to determine the compatibility with a corresponding chain size.

When it comes to stainless steel sprockets, they offer additional benefits compared to standard sprockets made from other materials. Stainless steel is known for its corrosion resistance, durability, and ability to withstand harsh environments. These properties make stainless steel sprockets suitable for applications that require resistance to rust, corrosion, or exposure to moisture.

The specific pitch size mentioned (06B, 08B, 10B, 12B, and 16B) indicates the compatibility of the stainless steel sprocket with chains of corresponding sizes. It is important to select the appropriate sprocket size that matches the chain size to ensure proper fit, alignment, and efficient power transmission in the application.

Stainless steel sprockets can be used in various industries and applications, including food processing, chemical processing, marine environments, outdoor equipment, and any other situation where corrosion resistance is crucial.

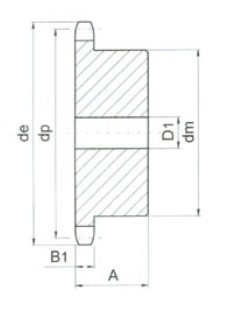

Pitch	Z	12	13	15	16	17	18	19	20	21	23	25	30
06B	De	---	43.0	49.3	52.3	55.3	58.3	61.3	64.3	68.0	73.5	80.0	94.7
	Dp	---	39.79	45.81	48.82	51.83	54.85	57.87	60.89	63.91	69.95	76.00	91.12
	Dm	---	28	34	37	40	43	45	46	48	52	57	60
	D1	---	10	10	10	10	10	10	10	12	12	12	12
	A	---	25	25	28	28	28	28	28	28	28	30	30
08B	De	53.0	57.9	65.9	69.9	74.0	78.0	82.0	86.0	90.1	98.1	106.2	126.3
	Dp	49.07	53.6	61.09	65.10	69.11	73.14	77.16	81.19	85.22	93.27	101.33	121.50
	Dm	33	37	45	50	52	56	60	64	68	70	70	80
	D1	10	10	10	12	12	12	12	12	14	14	14	16
	A	28	28	28	28	28	28	28	28	28	28	28	30
10B	De	---	73.0	83.0	88.0	93.0	98.3	103.3	108.4	113.4	123.4	134.0	158.8
	Dp	---	66.32	76.36	81.37	86.39	91.42	96.45	101.49	106.52	116.58	126.66	151.87
	Dm	---	47	57	60	60	70	75	75	80	80	80	90
	D1	---	12	12	12	12	12	14	14	16	16	16	20
	A	---	30	30	30	30	30	30	30	30	30	30	35
12B	De	---	87.5	99.8	105.5	111.5	118.0	124.2	129.7	136.0	149.0	160.0	---
	Dp	---	79.59	91.63	97.65	103.67	109.71	115.75	121.78	127.82	139.90	152.0	---
	Dm	---	58	70	75	80	80	80	80	90	90	90	---
	D1	---	16	16	16	16	16	16	16	20	20	20	---
	A	---	35	35	35	35	35	35	35	40	40	4	---
16B	De	---	117.0	133.0	141.0	149.0	157.0	165.2	173.0	181.2	---	---	---
	Dp	---	106.12	122.17	130.20	138.22	146.28	154.33	162.38	170.43	---	---	---
	Dm	---	78	92	100	100	100	100	100	110	---	---	---
	D1	---	16	16	19	20	20	20	20	20	---	---	---
	A	---	40	40	45	45	45	45	45	50	---	---	---
