Продукт Товар:HXPT-344

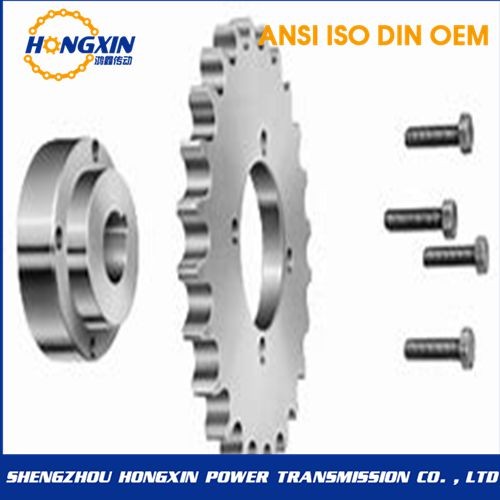

Модель: Готовая звездочка
Материал: C45, нержавеющая сталь и т. д.
Обработка поверхности: закаленные зубы, черный оксид, цинкование, электрофорез и т. д.
Упаковка: стандартный экспортный ящик, индивидуальная упаковка. (нейтральный или цветной ящик) доступный.
| Select a ANSI. No. | |||||||
|---|---|---|---|---|---|---|---|
|
Catalog Number
|
Hub Number
|
Pitch Diameter
|
Sprocket Bore
|
Hub Bore: Round
|
Hub Bore: Square
|
Hub Bore: Hex
|
Hub Bore: Spline
|
| A.N.S.I. No. 35 Chain - Type A Sprockets - Bored and Drilled For Assembly With Ready Hubs | |||||||
| 35AR23 | R10 | 2.754 | 1.375" | .5-1 | .75-.875 | .875, 1 | 1-6B, 1-10B, 1 1/4-6B |
| 35AR24 | R10 | 2.873 | 1.375" | .5-1 | .75-.875 | .875, 1 | 1-6B, 1-10B, 1 1/4-6B |
| 35AR25 | R10 | 2.992 | 1.375" | .5-1 | .75-.875 | .875, 1 | 1-6B, 1-10B, 1 1/4-6B |
| 35AR26 | R10 | 3.111 | 1.375" | .5-1 | .75-.875 | .875, 1 | 1-6B, 1-10B, 1 1/4-6B |
| 35AR28 | R10 | 3.349 | 1.375" | .5-1 | .75-.875 | .875, 1 | 1-6B, 1-10B, 1 1/4-6B |
| 35AR30 | R10 | 3.588 | 1.375" | .5-1 | .75-.875 | .875, 1 | 1-6B, 1-10B, 1 1/4-6B |
| 35AR32 | R12 | 3.826 | 1.625" | .5-1.25 | .75, .875, .937, 1 | .875, 1 | 1-6B, 1-10B, 1 1/4-6B, 1 3/8-6B, 1 3/8-10B |
| 35AR35 | R12 | 4.183 | 1.625" | .5-1.25 | .75, .875, .937, 1 | .875, 1 | 1-6B, 1-10B, 1 1/4-6B, 1 3/8-6B, 1 3/8-10B |
| 35AR36 | R12 | 4.303 | 1.625" | .5-1.25 | .75, .875, .937, 1 | .875, 1 | 1-6B, 1-10B, 1 1/4-6B, 1 3/8-6B, 1 3/8-10B |
| 35AR40 | R12 | 4.78 | 1.625" | .5-1.25 | .75, .875, .937, 1 | .875, 1 | 1-6B, 1-10B, 1 1/4-6B, 1 3/8-6B, 1 3/8-10B |
| 35AR45 | R12 | 5.376 | 1.625" | .5-1.25 | .75, .875, .937, 1 | .875, 1 | 1-6B, 1-10B, 1 1/4-6B, 1 3/8-6B, 1 3/8-10B |
| 35AR48 | R12 | 5.734 | 1.625" | .5-1.25 | .75, .875, .937, 1 | .875, 1 | 1-6B, 1-10B, 1 1/4-6B, 1 3/8-6B, 1 3/8-10B |
| 35AR54 | R12 | 6.449 | 1.625" | .5-1.25 | .75, .875, .937, 1 | .875, 1 | 1-6B, 1-10B, 1 1/4-6B, 1 3/8-6B, 1 3/8-10B |
| 35AR60 | R12 | 7.165 | 1.625" | .5-1.25 | .75, .875, .937, 1 | .875, 1 | 1-6B, 1-10B, 1 1/4-6B, 1 3/8-6B, 1 3/8-10B |
| AR Ready Sprockets | |||||||
| 41A425 | R12 | 3.989 | 1.625" | .5-1.25 | .75, .875, .937, 1 | .875, 1 | 1-6B, 1-10B, 1 1/4-6B, 1 3/8-6B, 1 3/8-10B |
| A.N.S.I. No. 41 Chain - Type A Sprockets - Bored and Drilled For Assembly With Ready Hubs | |||||||
| 41AR18 | R10 | 2.879 | 1.375" | .5-1 | .75, .875 | .875, 1 | 1-6B, 1-10B, 1 1/4-6B |
| AR Ready Sprockets | |||||||
| 41AR19 | R10 | 3.038 | 1.375" | .5-1 | .75, .875 | .875, 1 | 1-6B, 1-10B, 1 1/4-6B |
| 41AR20 | R10 | 3.196 | 1.375" | .5-1 | .75, .875 | .875, 1 | 1-6B, 1-10B, 1 1/4-6B |
| 41AR21 | R10 | 3.355 | |||||
