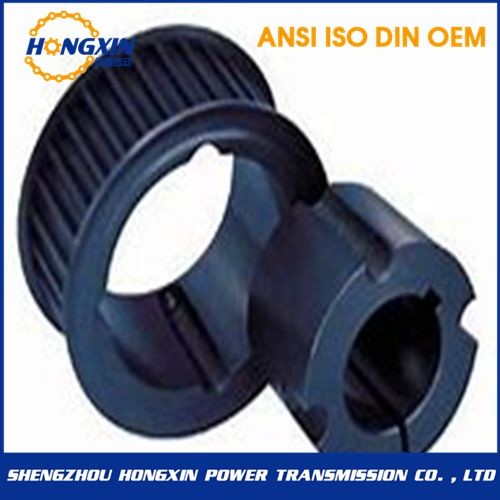

HTP 14M-40 Taper Bore Timing Pulley

Продукт Товар:HXPT-278

Model:HTP 14M-40 Taper Bore Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

14M
PITCH -14 mm
FOR BELT WIDTH - 40 mm

Code	Type	Material	Teeth	Buss	Hole max	dp	de	Df	Dm	Di	F	L	R	n◦ flange
Code	Type	Material	Teeth	Buss	Hole max	dp	de	Df	Dm	Di	F	L	R	n◦ flange
TL 28 14M 40	18F	St	28	2012	50	124,78	122,12	127		94	54	32	11	400
TL 30 14M 40	18F	St	30	2012	50	133,69	130,99	138		98	54	32	11	401
TL 32 14M 40	18F	St	32	2012	50	142,60	139,88	154		108	54	32	11	403
TL 34 14M 40	18F	St	34	2517	60	151,52	148,79	160		110	54	45	4,5	404
TL 36 14M 40	18F	St	36	2517	60	160,43	157,68	168		120	54	45	4,5	405
TL 38 14M 40	18F	St	38	2517	60	169,34	166,60	183		130	54	45	4,5	406
TL 40 14M 40	18F	St	40	2517	60	178,25	175,49	188		138	54	45	4,5	407
TL 44 14M 40	18F	St	44	3020	75	196,08	193,28	211		155	54	51	1,5	411
TL 48 14M 40	18F	St	48	3020	75	213,90	211,11	226		170	54	51	1,5	412
TL 56 14M 40	18F	GG	56	3020	75	249,55	246,76	256		208	54	51	1,5	416
TL 64 14M 40	19F	GG	64	3020	75	285,21	282,41	296	170	240	54	51	1,5	418
TL 72 14M 40	19	GG	72	3020	75	320,86	318,06		170	280	54	51	1,5
TL 80 14M 40	20	GG	80	3020	75	356,51	353,71		170	315	54	51	1,5
TL 90 14M 40	20	GG	90	3020	75	401.07	398.28		170	360	54	51	1,5
TL 112 14M 40	20	GG	112	3020	75	499.11	496.32		170	457	54	51	1,5
TL 144 14M 40	20	GG	144	3020	75	641.71	638.92		170	600	54	51	1,5
TL 168 14M 40	20	GG	168	3020	75	748.66	745.87		170	706	54	51	1,5
TL 192 14M 40	20	GG	192	3020	75	855.62	852.82		170	813	54	51	1,5
