Water channel gate valve

Description

product description:
Product name and model: Waterway gate valve ASZPS41th- (10/16/25) (Z/Q)
Product use: The waterway gate valve series is designed for water and neutral liquid medium, and the maximum use temperature to the elastic gate valve is 120 ° C. The main function of the water channel valve is to control the flow of water. Its design is to reduce external corrosion and make it suitable for underground installation.
Product Features: 1. Internal and external static spraying epoxy resin protective layers after spraying
2. Full channel, no grooves, no impurities precipitation. Elastic soft sealing ensures that the non -residual fragments are completely closed, the minimum pressure loss, long -acting sealing and accurate gate orientation.
3. The iron core of the gate is completely vulcated with EPDM or NBR rubber and integrates zinc and copper alloy alloy valve nuts. Between the valve caps, the valve cap is placed in the groove.
4. The valve body is made of precision. The precise geometric size makes the valve seal without any precision processing inside the valve body.
5. Burting bolts seal with plastic caps. Ball and ink cast iron increases resistance to impact resistance. All external bolts are used for anti -rust protection.

Main performance specifications:

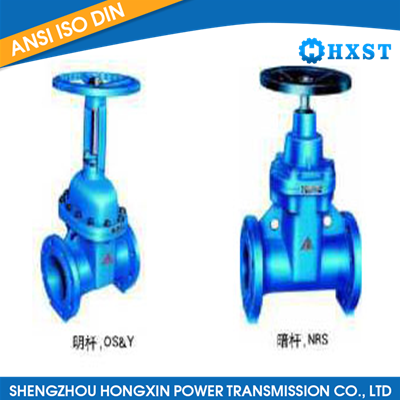

Hading lever/bright rod elastic structure

Driving method: Gear transmission, manual, electric

Applicable temperature: Dingqing Rubber ≤80 ℃ Trinity ethyli leisurel ≤120 ℃

Applicable medium: water, sewage and other media

Nominal diameter DN50 ~ DN1000

Nominal pressure PN10 ~ PN25
