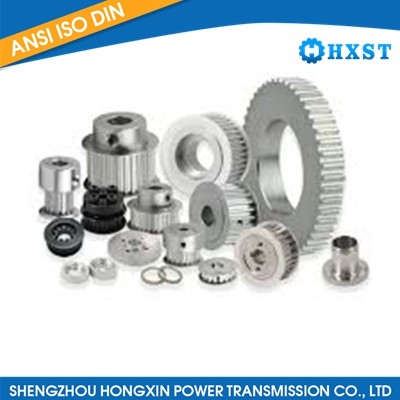

T5-36 Timing Pulley
  1. T5-36 Timing Pulley

T5-36 Timing Pulley

Product Item:HXST-239

Model:T5-36 Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

T5-36 Timing Pulley , t5 timing belt pulley , t5 belt pulley , t5 timing pulleys , htd timing belt pulleys
Send InquiryLive chat

Description

T5-36 Timing Pulley is a specific type of timing pulley used in power transmission systems. Here's some information about this particular pulley:

Size: The designation "T5-36" indicates the tooth profile and belt length. In this case, it refers to a T (Tooth) tooth profile and a belt length of 36 teeth.
Material: The material used for this timing pulley can vary but is typically made from aluminum, steel, or other durable materials depending on the application requirements.
Belt Profile Compatibility: The T5 designation corresponds to a specific tooth profile, which must match with the corresponding timing belt that also has a T5 profile for proper operation and synchronization in the power transmission system.
Application: Timing pulleys are commonly used in various industrial applications where precise motion control and synchronization are required, such as conveyors, robotics, printing machinery, and CNC machines.


Product details

TIMING PULLEYS T5-36


T5-36

SPC TYPE Z De Df Dm F L d
36-T5-10 2F 10 15.05 19.5 8 30 36 6
36-T5-12 2F 12 18.25 23 10 30 36 6
36-T5-14 2F 14 21.45 25 13 30 36 6
36-T5-15 2F 15 23.05 28 16 30 36 6
36-T5-16 2F 16 24.6 32 18 30 36 6
36-T5-18 2F 18 27.8 32 20 30 36 6
36-T5-19 2F 19 29.4 37 22 30 36 6
36-T5-20 2F 20 31 37 23 30 36 6
36-T5-22 2F 22 34.25 38 24 30 36 6
36-T5-24 2F 24 37.4 43 26 30 36 6
36-T5-25 2F 25 38.95 44 26 30 36 6
36-T5-26 2F 26 40.6 44 26 30 36 6
36-T5-27 2F 27 42.2 48 30 30 36 8
36-T5-28 2F 28 43.75 48 32 30 36 8
36-T5-30 2F 30 46.95 51 34 30 36 8
36-T5-32 2F 32 50.1 54 38 30 36 8
36-T5-36 2F 36 56.45 61 38 30 36 8
36-T5-40 2F 40 62.85 67 40 30 36 8
36-T5-42 2F 42 66 70 40 30 36 8
36-T5-44 2 44 69.2 - 45 30 36 8
36-T5-48 2 48 75.55 - 50 30 36 8
36-T5-60 2 60 94.65 - 65 30 36 8
