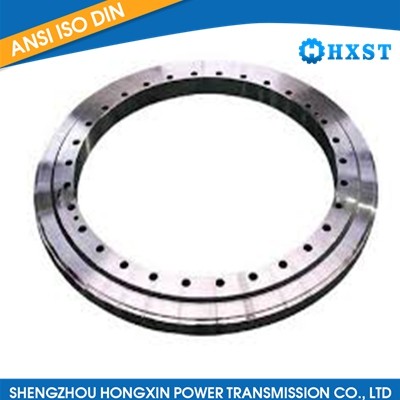

Single Row Ball Slewing Bearing Non Gear （HS series）

Description

Structural characteristics, performance and scope of application

The single-row four-point contact spherical slewing bearing is composed of two seat rings. It has compact structure, light weight, and four-point contact between steel ball and arc raceway. It can bear axial force, radial force and overturning moment at the same time. Rotary conveyor, welding operator, small and medium cranes and excavators are optional construction machinery.

Note:
1. n1 is the number of lubricating oil holes, evenly distributed: oil cup M10 × 1 JB / T7940.1-TB7940.2.
2. The mounting hole n-Φ can be changed to a screw hole; the tooth width b can be changed to H-h.
