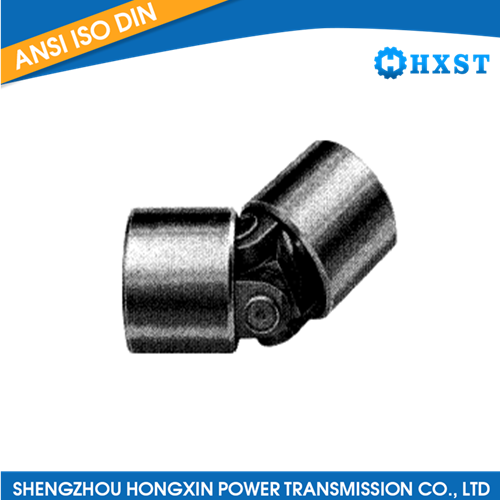

Single High Speed Universal Joint with Bore

Product Item:HXST-1814

Model:Single High Speed Universal Joint with Bore

Installation: The bore allows for straightforward installation by fitting the universal joint onto shafts or other components using appropriate fasteners

Material: Typically made from high-quality materials such as alloy steel or stainless steel to ensure durability and strength.

Maintenance: Regular inspection and lubrication are recommended to ensure optimal performance and longevity of the universal joint

Description

A single high-speed universal joint with a bore refers to a specific type of mechanical joint used to transmit rotational motion at high speeds between two shafts that are not aligned with each other. Here's an explanation of its components:

Universal Joint: The universal joint, also known as a U-joint or Cardan joint, is a flexible coupling that allows for the transmission of torque and rotation between two non-aligned shafts. It consists of a cross-shaped component with bearings at each end and yokes connected to the shafts.

High-Speed: The term "high-speed" indicates that the universal joint is designed to operate at relatively high rotational speeds without compromising its performance or integrity. This requires careful design considerations to ensure smooth operation and minimize issues such as vibration, heat generation, and wear.

Bore: The term "bore" refers to a central hole or opening in one or both of the yokes of the universal joint. The bore allows the joint to be mounted directly onto a shaft, typically through the use of fasteners like set screws or clamps.

The single high-speed universal joint with a bore is commonly used in applications where two shafts need to transmit rotational motion efficiently, even when they are not perfectly aligned. The bore feature enables easy and secure mounting onto the shafts, facilitating a reliable and compact connection.

It's worth noting that the specific design and dimensions of the universal joint, including the bore size, will depend on the application requirements and the load and speed conditions it needs to handle
