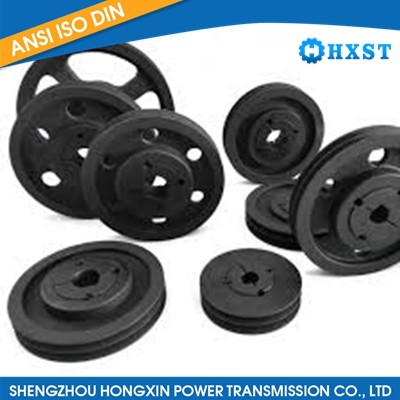

SPZ-2 Taper Bore Pulley

Description

SPZ-2 taper bore pulley is a specific type of pulley that features a taper bore design for easy and secure mounting onto a shaft. It is commonly used in power transmission systems where accurate speed ratios and motion control are required.

Here are some key features of the SPZ-2 taper bore pulley:

Size: The "SPZ-2" designation indicates that the pulley is designed to work with SPZ (Super Power Z) section belts, which have a specific width and pitch. The number "2" refers to the number of grooves on the pulley.

Taper Bore: The taper bore design allows the pulley to be mounted securely onto a shaft using a Taper Bushing. The taper bore typically has a tapered inner surface that matches the taper of the bushing, providing a tight and secure fit. This eliminates the need for additional keyways or set screws.

Quick Installation/Removal: The taper bore design enables quick and easy installation or removal of the pulley from a shaft. By tightening or loosening the screws on the taper bushing, the pulley can be securely attached or detached.

Material: Taper bore pulleys are commonly made from materials such as cast iron or steel, which offer durability and strength to handle power transmission requirements.

Applications: The SPZ-2 taper bore pulley is commonly used in various power transmission applications, including machinery, industrial equipment, and automotive systems. It is suitable for systems that require precise speed ratios and torque transfer.

Product details

TAPER BORE PULLEYS SPZ-2

SPZ-2

PART NO. P.D O.D TYPE BUSH NO. MAX BORE E F J K L M N spz 50-2 50.0 54.0 9 1008 25 - 49 28 27 22 - - spz 56-2 56.0 60.0 9 1108 28 - 49 35 27 22 - - spz 60-2 60.0 64.0 9 1108 28 - 49 36 27 22 - - spz 63-2 63.0 67.0 8 1108 28 - 28 40 6 22 - - spz 67-2 67.0 71.0 8 1108 28 - 28 42 6 22 - - spz 71-2 71.0 75.0 8 1108 28 - 28 42 6 22 - - spz 75-2 75.0 79.0 8 1210 32 - 28 51 3 25 - - spz 80-2 80.0 84.0 8 1210 32 - 28 51 3 25 - - spz 85-2 85.0 89.0 8 1610 42 - 28 60 3 25 - - spz 90-2 90.0 94.0 8 1610 42 - 28 61 3 25 - - spz 95-2 95.0 99.0 8 1610 42 - 28 66 3 25 - - spz 100-2 100.0 104.0 8 1610 42 - 28 71 3 25 - - spz 106-2 106.0 110.0 8 1610 42 - 28 76 3 25 - - spz 112-2 112.0 116.0 8 1610 42 - 28 84 3 25 - - spz 118-2 118.0 122.0 8 1610 42 - 28 90 3 25 - - spz 125-2 125.0 129.0 8 1610 42 - 28 97 3 25 - - spz 132-2 132.0 136.0 8 1610 42 - 28 104 3 25 - - spz 140-2 140.0 146.0 8 1610 42 - 28 112 3 25 - - spz 150-2 150.0 154.0 1 2012 50 - 28 - - 32 4 100 spz 160-2 160.0 164.0 1 2012 50 - 28 - - 32 4 100 spz 170-2 170.0 174.0 1 2012 50 - 28 - - 32 4 100 spz 180-2 180.0 184.0 7 2012 50 10 28 152 - 32 4 100 spz 190-2 190.0 194.0 7 2012 50 10 28 161 - 32 4 100 spz 200-2 200.0 204.0 7 2012 50 10 28 171 - 32 4 100 spz 224-2 224.0 228.0 7 2012 50 10 28 196 - 32 4 100 spz 250-2 250.0 254.0 4 2012 50 - 28 222 2 32 2 100 spz 280-2 280.0 284.0 4 2012 50 - 28 252 2 32 2 100 spz 315-2 315.0 319.0 4 2012 50 - 28 286 2 32 2 100 spz 355-2 355.0 359.0 4 2012 Related Products High quality customized pitch conveyor chain sprocket Large Diameter Duplex Chain Sprocket 100B-3 Sprockets With Split Taper Bushing 35TI Equal Impact Idlers 100B-2 Stock Sprocket HTP 5M-15 Taper Bore Timing Pulley
