SPC-5 Standard Pulley
  1. SPC-5 Standard Pulley

SPC-5 Standard Pulley

Product Item:HXST-192

Model:SPC-5 Standard Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

SPC-5 Standard Pulley , spc sheaves , spc-5 specification , spc pulleys
Send InquiryLive chat

Description

SPC-5 standard pulley is a specific type of pulley that follows the SPC (Super Power Curve) profile for V-belts. It is commonly used in power transmission systems where accurate speed ratios and motion control are required.

Here are some key features of the SPC-5 standard pulley:

Size: The "SPC-5" designation indicates that the pulley is designed to work with SPC section V-belts, which have a specific width and pitch. The number "5" refers to the number of grooves on the pulley.

Standard Design: The SPC-5 pulley follows the standard design for SPC metric V-belt pulleys. It has a specific groove shape and dimensions to match the corresponding SPC V-belt.

Material: Standard pulleys like the SPC-5 can be made from various materials, including cast iron, steel, or aluminum. The choice of material depends on factors such as load requirements, operating conditions, and cost considerations.

Keyway or Set Screw: Depending on the design, the SPC-5 pulley may include a keyway or set screw mechanism to securely attach it to the shaft. This ensures proper alignment and prevents slippage during operation.

Applications: The SPC-5 standard pulley is commonly used in various power transmission applications, including machinery, industrial equipment, and automotive systems. It is suitable for systems that require precise speed ratios and torque transfer using SPC V-belts.

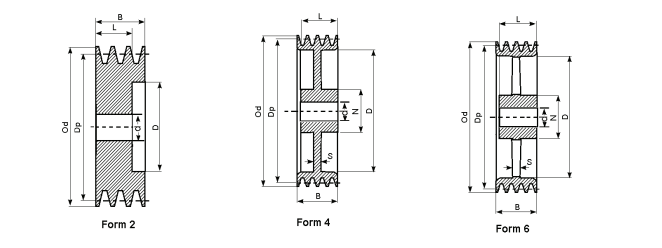

STANDARD BORE PULLEYS SPC-5


SPC-5

PART NO.
P.D
O.D
TYPE
N
L
D
E
B
d
spc 150-5 150.0 159.6 2 - 96 93 - 136 20
spc 160-5 160.0 169.6 2 - 96 103 - 136 20
spc 180-5 180.0 189.6 4 82 96 123 20 136 20
spc 200-5 200.0 209.6 4 90 100 143 25 136 25
spc 225-5 225.0 234.6 4 90 100 168 25 136 25
spc 250-5 250.0 259.6 4 102 100 193 25 136 25
spc 280-5 280.0 289.6 4 102 100 223 25 136 25
spc 300-5 300.0 309.6 4 104 100 243 25 136 25
spc 315-5 315.0 324.6 4 112 100 258 25 136 25
spc 340-5 340.0 349.6 6 114 100 283 28 136 25
spc 355-5 355.0 364.6 6 114 100 298 28 136 25
spc 400-5 400.0 409.6 6 120 100 343 28 136 25
spc 450-5 450.0 459.6 6 120 100 393 30 136 25
spc 500-5 500.0 509.6 6 126 100 443 30 136 25
spc 560-5 560.0 569.6 6 130 100 503 32 136 25
spc 600-5 600.0 609.6 6 130 100 543 32 136 25
spc 630-5 630.0 639.6 6 130 100 573 32 136 25
