SPC-3 Standard Pulley
  1. SPC-3 Standard Pulley

SPC-3 Standard Pulley

Product Item:HXST-190

Model:SPC-3 Standard Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

SPC-3 Standard Pulley , spc pulley specification , spc pulleysspc pulley , spc pulley catalogue
Send InquiryLive chat

Description

SPC-3 standard pulley is a specific type of pulley that follows the SPC (Super Power Curve) profile for V-belts. It is commonly used in power transmission systems where accurate speed ratios and motion control are required.

Here are some key features of the SPC-3 standard pulley:

Size: The "SPC-3" designation indicates that the pulley is designed to work with SPC section V-belts, which have a specific width and pitch. The number "3" refers to the number of grooves on the pulley.

Standard Design: The SPC-3 pulley follows the standard design for SPC metric V-belt pulleys. It has a specific groove shape and dimensions to match the corresponding SPC V-belt.

Material: Standard pulleys like the SPC-3 can be made from various materials, including cast iron, steel, or aluminum. The choice of material depends on factors such as load requirements, operating conditions, and cost considerations.

Keyway or Set Screw: Depending on the design, the SPC-3 pulley may include a keyway or set screw mechanism to securely attach it to the shaft. This ensures proper alignment and prevents slippage during operation.

Applications: The SPC-3 standard pulley is commonly used in various power transmission applications, including machinery, industrial equipment, and automotive systems. It is suitable for systems that require precise speed ratios and torque transfer using SPC V-belts.

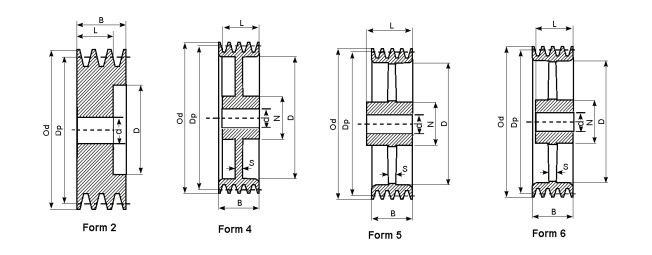

STANDARD BORE PULLEYS SPC-3


SPC-3

PART NO. P.D O.D TYPE N L D E B d
spc 140-3 140.0 149.6 2 - 65 83 - 85 20
spc 150-3 150.0 159.6 2 - 65 93 - 85 20
spc 160-3 160.0 169.6 2 - 65 103 - 85 20
spc 180-3 180.0 189.6 4 82 65 123 18 85 20
spc 200-3 200.0 209.6 4 86 65 143 18 85 20
spc 225-3 225.0 234.6 4 90 70 168 21 85 20
spc 250-3 250.0 259.6 4 92 70 193 21 85 20
spc 280-3 280.0 289.6 4 92 70 223 21 85 20
spc 300-3 300.0 309.6 4 92 70 243 21 85 20
spc 315-3 315.0 324.6 6 92 70 258 22 85 25
spc 340-3 340.0 349.6 6 100 70 283 22 85 25
spc 355-3 355.0 364.6 6 110 70 298 22 85 25
spc 400-3 400.0 409.6 5 114 90 343 24 85 25
spc 450-3 450.0 459.6 5 114 90 393 24 85 25
spc 500-3 500.0 509.6 5 114 90 443 24 85 25
spc 560-3 560.0 569.6 5 114 90 503 28 85 25
spc 600-3 600.0 609.6 5 114 90 543 28 85 25
spc 630-3 630.0 639.6 5 114 90 573 28 85 25
