SPB-6 Standard Pulley
  1. SPB-6 Standard Pulley

SPB-6 Standard Pulley

Product Item:HXST-187

Model:SPB-6 Standard Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

SPB-6 Standard Pulley , spb pulley meaning , spb pulley dimensions , v belt pulley system
Send InquiryLive chat

Description

SPB-6 standard pulley is a specific type of pulley that follows the SPB (Super Power Belt) profile for V-belts. It is commonly used in power transmission systems where accurate speed ratios and motion control are required.

Here are some key features of the SPB-6 standard pulley:

Size: The "SPB-6" designation indicates that the pulley is designed to work with SPB section V-belts, which have a specific width and pitch. The number "6" refers to the number of grooves on the pulley.

Standard Design: The SPB-6 pulley follows the standard design for SPB metric V-belt pulleys. It has a specific groove shape and dimensions to match the corresponding SPB V-belt.

Material: Standard pulleys like the SPB-6 can be made from various materials, including cast iron, steel, or aluminum. The choice of material depends on factors such as load requirements, operating conditions, and cost considerations.

Keyway or Set Screw: Depending on the design, the SPB-6 pulley may include a keyway or set screw mechanism to securely attach it to the shaft. This ensures proper alignment and prevents slippage during operation.

Applications: The SPB-6 standard pulley is commonly used in various power transmission applications, including machinery, industrial equipment, and automotive systems. It is suitable for systems that require precise speed ratios and torque transfer using SPB V-belts.

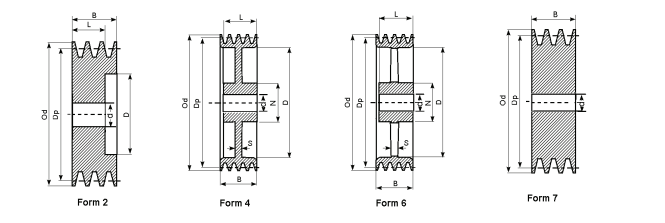

STANDARD BORE PULLEYS SPB-6


SPB-6

PART NO. P.D O.D TYPE N L D E B d
spb 120-6 120.0 127.0 7 - - - - 120 20
spb 125-6 125.0 132.0 2 - 60 83 - 120 20
spb 132-6 132.0 139.0 2 - 60 88 - 120 20
spb 140-6 140.0 147.0 2 - 60 98 - 120 20
spb 150-6 150.0 157.0 2 - 60 108 - 120 20
spb 160-6 160.0 167.0 2 - 65 118 - 120 20
spb 170-6 170.0 177.0 4 70 65 128 22 120 20
spb 180-6 180.0 187.0 4 80 70 138 22 120 20
spb 200-6 200.0 207.0 4 96 70 158 25 120 25
spb 212-6 212.0 219.0 4 104 80 170 25 120 25
spb 225-6 225.0 232.0 4 104 80 183 25 120 25
spb 250-6 250.0 257.0 4 104 80 208 25 120 25
spb 280-6 280.0 287.0 4 104 80 238 25 120 25
spb 300-6 300.0 307.0 6 104 80 258 25 120 25
spb 315-6 315.0 322.0 6 120 90 273 25 120 25
spb 355-6 355.0 362.0 6 120 90 313 25 120 25
spb 400-6 400.0 407.0 6 120 100 358 28 120 25
spb 450-6 450.0 457.0 6 120 100 408 28 120 25
spb 500-6 500.0 507.0 6 129 105 458 33 120 25
spb 560-6 560.0 567.0 6 129 105 518 33 120 25
spb 600-6 600.0 607.0 6 129 105 558 33 120 25
spb 630-6 630.0 637.0 6 140 105 588 33 120 25
