SPB-5 Standard Pulley
  1. SPB-5 Standard Pulley

SPB-5 Standard Pulley

Product Item:HXST-186

Model:SPB-5 Standard Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

SPB-5 Standard Pulley , spb pulley dimensions , spb pulley full form , pulley spb
Send InquiryLive chat

Description

SPB-5 standard pulley is a specific type of pulley that follows the SPB (Super Power Belt) profile for V-belts. It is commonly used in power transmission systems where accurate speed ratios and motion control are required.

Here are some key features of the SPB-5 standard pulley:

Size: The "SPB-5" designation indicates that the pulley is designed to work with SPB section V-belts, which have a specific width and pitch. The number "5" refers to the number of grooves on the pulley.

Standard Design: The SPB-5 pulley follows the standard design for SPB metric V-belt pulleys. It has a specific groove shape and dimensions to match the corresponding SPB V-belt.

Material: Standard pulleys like the SPB-5 can be made from various materials, including cast iron, steel, or aluminum. The choice of material depends on factors such as load requirements, operating conditions, and cost considerations.

Keyway or Set Screw: Depending on the design, the SPB-5 pulley may include a keyway or set screw mechanism to securely attach it to the shaft. This ensures proper alignment and prevents slippage during operation.

Applications: The SPB-5 standard pulley is commonly used in various power transmission applications, including machinery, industrial equipment, and automotive systems. It is suitable for systems that require precise speed ratios and torque transfer using SPB V-belts.

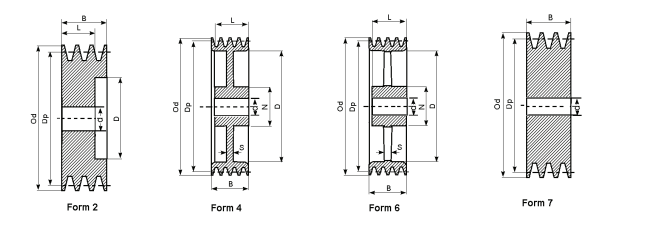

STANDARD BORE PULLEYS SPB-5


SPB-5

PART NO. P.D O.D TYPE N L D E B d
spb 80-5 80.0 87.0 7 - - - - 101 15
spb 90-5 90.0 97.0 7 - - - - 101 15
spb 100-5 100.0 107.0 7 - - - - 101 15
spb 112-5 112.0 119.0 7 - - - - 101 20
spb 120-5 120.0 127.0 7 - - - - 101 20
spb 125-5 125.0 132.0 2 - 60 83 - 101 20
spb 132-5 132.0 139.0 2 - 60 88 - 101 20
spb 140-5 140.0 147.0 2 - 60 98 - 101 20
spb 150-5 150.0 157.0 2 - 60 108 - 101 20
spb 160-5 160.0 167.0 2 - 60 118 - 101 20
spb 170-5 170.0 177.0 4 70 60 128 22 101 20
spb 180-5 180.0 187.0 4 80 70 138 22 101 20
spb 200-5 200.0 207.0 4 96 70 158 25 101 25
spb 212-5 212.0 219.0 4 96 70 170 25 101 25
spb 225-5 225.0 232.0 4 96 70 183 25 101 25
spb 250-5 250.0 257.0 4 104 75 208 25 101 25
spb 280-5 280.0 287.0 4 104 75 238 25 101 25
spb 300-5 300.0 307.0 6 104 75 258 22 101 25
spb 315-5 315.0 322.0 6 104 75 273 22 101 25
spb 355-5 355.0 362.0 6 104 75 313 22 101 25
spb 400-5 400.0 407.0 6 112 85 358 24 101 25
spb 450-5 450.0 457.0 6 112 85 408 26 101 25
spb 500-5 500.0 507.0 6 120 90 458 30 101 25
spb 560-5 560.0 567.0 6 120 90 518 30 101 25
spb 600-5 600.0 607.0 6 120 90 558 30 101 25
spb 630-5 630.0 637.0 6 128 90 588 30 101 25
