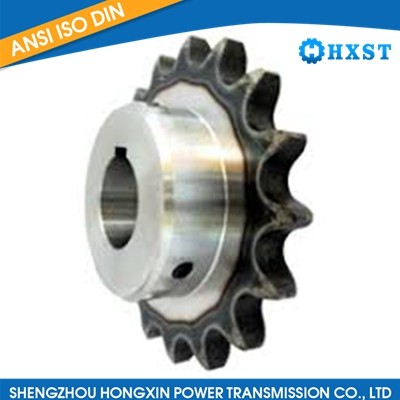

NK 35B Finished Bore Sprocket

Product Item:HXST-146

Model:NK 35B Finished Bore Sprocket

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

Description

NK 35B Finished Bore Sprocket is a specific type of sprocket that comes with a pre-machined and finished bore size. Here are some key features of the NK 35B finished bore sprocket:

Finished Bore Design: The "finished bore" designation indicates that the sprocket has a pre-machined and finished bore size. This allows for easy installation onto a shaft without the need for additional machining or modifications.

NK 35B Designation: The "NK 35B" designation specifies the specific model or part number for the finished bore sprocket. It may include information about the tooth count, pitch, and other relevant specifications.

Material: Finished bore sprockets like the NK 35B can be made from various materials, such as carbon steel or stainless steel. The choice of material depends on factors such as load requirements, environmental conditions, and cost considerations.

Teeth Configuration: The NK 35B finished bore sprocket will have teeth designed to match the pitch and width of the corresponding roller chain. The tooth profile and configuration ensure proper engagement and smooth operation with the chain.

Applications: Finished bore sprockets are commonly used in power transmission systems where a sprocket needs to be easily mounted onto a shaft. The NK 35B finished bore sprocket can be utilized in various applications such as machinery, conveyors, or industrial equipment.

Product details

SIZE	35
PITCH	3/8"
INSIDE WIDTH	3/16"
ROLLER DIA	.200"
TOOTH WIDTH (T)	0.168

(Dimension : inch)

Outside Dia Do	Pitch Dia Dp	Length Thru Bore	Sprocket No.		Finished Bores Includes Keyway and Setscrew	Weight Lbs. (App.)
Outside Dia Do	Pitch Dia Dp	BL	Type	Teeth	Finished Bores Includes Keyway and Setscrew	Weight Lbs. (App.)
1.258	1.097	3/4	FB35B	9	3/8	0.10
1.379	1.214	3/4		10	3/8, 1/2, 5/8	0.11
1.502	1.331	3/4		11	3/8, 1/2, 5/8, 3/4	0.15
1.625	1.449	3/4		12	1/2, 5/8, 3/4	0.18
1.746	1.567	3/4		13	1/2, 5/8, 3/4	0.20
1.868	1.685	3/4		14	1/2, 5/8, 3/4	0.22
1.989	1.804	3/4		15	1/2, 5/8, 3/4, 1	0.24
2.110	1.922	3/4		16	1/2, 5/8, 3/4, 1	0.29
2.231	2.041	3/4		17	1/2, 5/8, 3/4, 1	0.36
2.352	2.160	3/4		18	1/2, 5/8, 3/4, 1	0.39
2.472	2.279	3/4		19	1/2, 5/8, 3/4, 1	0.44
2.593	2.397	3/4		20	1/2, 5/8, 3/4, 1	0.51
2.713	2.516	7/8		21	1/2, 5/8, 3/4, 1	0.75
2.833	2.635	7/8		22	1/2, 5/8, 3/4, 1	0.78
2.954	2.754	7/8		23	1/2, 5/8, 3/4, 1	0.78
3.074	2.873	7/8		24	1/2, 5/8, 3/4, 1	0.79
3.194	2.992	7/8		25	1/2, 5/8, 3/4, 1	0.80
3.314	3.111	7/8		26	5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4	0.84
3.434	3.230	7/8		27	5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4	0.88
3.553	3.349	7/8		28	5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4	0.86
3.793	3.588	7/8		30	5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4	0.96
4.032	3.826	7/8		32	5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4	1.14
4.392	4.184	1		35	5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4	1.38
4.511	4.303	1		36	5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4	1.41
4.990	4.780	1		40	5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4	1.56
5.229	5.018	1		42	5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4	1.64
5.588	5.376	1		45	5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4	1.74
5.946	5.734	1		48	5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4	1.86
6.663	6.449	1		54	5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4	1.98
7.380	7.165	1		60	5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4	2.34
8.575	8.358	1		70	5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4	3.14
8.814	8.597	1		72	5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4	3.30
9.770	9.552	1		80	5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4	3.94
10.247	10.029	1		84	5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4	4.26
11.680	11.461	1		96	5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4	5.22
13.590	13.371	1		112	5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4	6.50
