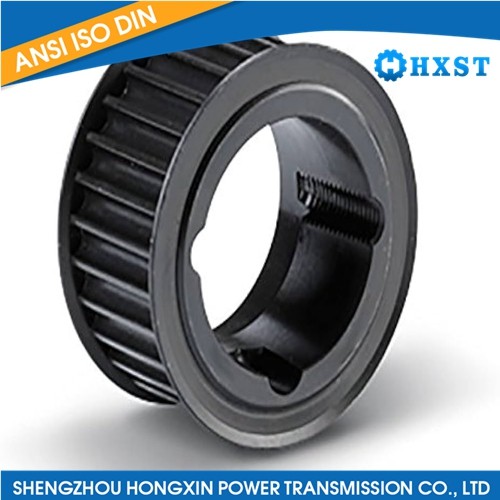

L075 Taper Bushing Timing Pulley
  1. L075 Taper Bushing Timing Pulley

L075 Taper Bushing Timing Pulley

Product Item:HXST-234

Model:L075 Taper Bushing Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

L075 Taper Bushing Timing Pulley , split taper bushing pulley , taper bushing pulley , taper lock timing belt pulley
Send InquiryLive chat

Description

L075 Taper Bushing Timing Pulley is a specific type of timing pulley used in power transmission systems. Here's some information about this particular pulley:

Size: The designation "L075" indicates the size and configuration of the timing pulley.
Taper Bushing: The "Taper Bushing" feature means that the pulley has a tapered bore with a matching taper bushing. This allows for easy installation and removal by tightening or loosening the bushing.
Material: The material used for this timing pulley can vary but is typically made from aluminum, steel, or other durable materials depending on the application requirements.
Belt Compatibility: The L075 designation corresponds to a specific belt length or number of teeth that matches with the corresponding timing belt to ensure proper operation and synchronization in the power transmission system.
Application: Timing pulleys with taper bushings are commonly used in various industrial applications where precise motion control and synchronization are required, such as conveyors, robotics, printing machinery, and CNC machines.
