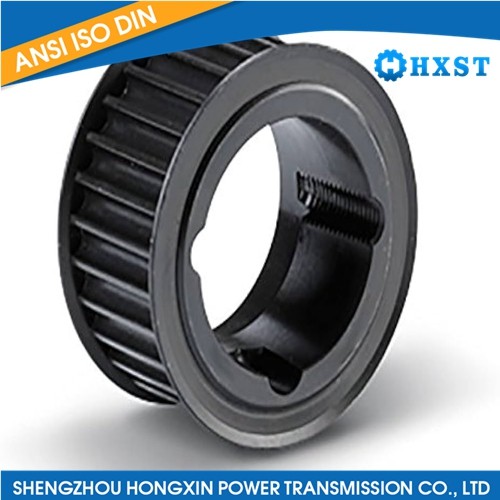

HTP 8M-85 Taper Bushing Timing Pulley
  1. HTP 8M-85 Taper Bushing Timing Pulley

HTP 8M-85 Taper Bushing Timing Pulley

Product Item:HXST-263

Model:HTP 8M-85 Taper Bushing Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

HTP 8M-85 Taper Bushing Timing Pulley , 8m timing pulley , htd timing belt 8mm pitch , taper bushing pulley
Send InquiryLive chat

Description

HTP 8M-85 Taper Bushing Timing Pulley is a specific type of timing pulley used in power transmission systems. Here's some information about this particular pulley:

Size: The designation "8M-85" indicates the pitch size and belt length. In this case, it refers to an 8mm pitch size and a belt length of 85 teeth.
Taper Bushing: The "Taper Bushing" feature means that the pulley has a tapered bore with a matching taper bushing. This allows for easy installation and removal by tightening or loosening the bushing.
Material: The material used for this timing pulley can vary but is typically made from aluminum, steel, or other durable materials depending on the application requirements.
Timing Belt Compatibility: The 8M-85 designation corresponds to a specific tooth profile and pitch size, which must match with the corresponding timing belt for proper operation and synchronization in the power transmission system.
Application: Timing pulleys with taper bushings are commonly used in various industrial applications where precise motion control and synchronization are required, such as conveyors, robotics, printing machinery, and CNC machines.
To ensure proper compatibility and use, it's important to consult the manufacturer's specifications and guidelines for the HTP 8M-85 Taper Bushing Timing Pulley in your specific application
