HTP 8M-50 Taper Bore Timing Pulley
  1. HTP 8M-50 Taper Bore Timing Pulley

HTP 8M-50 Taper Bore Timing Pulley

Product Item:HXST-277

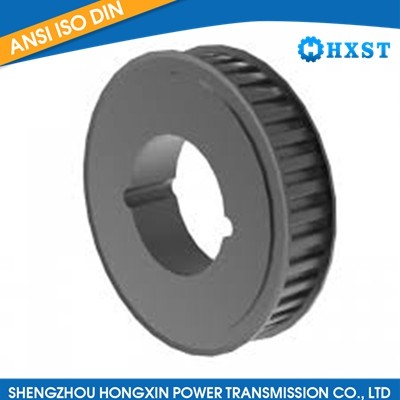

Model:HTP 8M-50 Taper Bore Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

HTP 8M-50 Taper Bore Timing Pulley , taper bore pulley , 8mm timing belt pulley
Send InquiryLive chat

Description

HTP 8M-50 Taper Bore Timing Pulley is a specific type of timing pulley used in power transmission systems. Here's some information about this particular pulley:

Size: The designation "8M-50" indicates the pitch size and belt length. In this case, it refers to an 8mm pitch size and a belt length of 50 teeth.
Taper Bore: Similar to the previous examples, the taper bore feature means that the pulley has a tapered inner bore, allowing for easy installation and removal using a locking device.
Material: The material used for this timing pulley can vary but is typically made from aluminum, steel, or other durable materials depending on the application requirements.
Timing Belt Compatibility: The 8M-50 designation corresponds to a specific tooth profile and pitch size, which must match with the corresponding timing belt for proper operation and synchronization in the power transmission system.
Application: Timing pulleys are commonly used in various industrial applications such as conveyors, robotics, printing machinery, and CNC machines where precise motion control and synchronization are essential.


8M
PITCH - 8 mm
FOR BELT WIDTH - 50 mm

Code Type Material Teeth Buss Hole max dp de Df Dm Di F L R n◦ flange
TL 28 8M 50 16F St 28 1210 32 71,30 70,08 75 50 60 25 35 312
TL 30 8M 50 16F St 30 1615 42 76,39 75,13 83 58 60 38 22 314
TL 32 8M 50 16F St 32 1615 42 81,49 80,16 87 63 60 38 22 315
TL 34 8M 50 16F St 34 1615 42 86,58 85,21 91 65 60 38 22 316
TL 36 8M 50 16F St 36 1615 42 91,67 90,30 98 68 60 38 22 319
TL 38 8M 50 16F St 38 1615 42 96,77 95,39 103 72 60 38 22 320
TL 40 8M 50 18F St 40 2012 50 101,86 100,49 106 80 60 32 14 321
TL 44 8M 50 18F St 44 2012 50 112,05 110,67 119 86 60 32 14 325
TL 48 8M 50 18F St 48 2012 50 122,23 120,86 127 95 60 32 14 327
TL 56 8M 50 18F St 56 2517 60 142,60 141,23 148 116 60 45 7.5 333
TL 64 8M 50 18F St 64 2517 60 162,97 161,60 168 136 60 45 7.5 338
TL 72 8M 50 19F St 72 2517 60 183,35 181,97 192 125 158 60 45 7.5 340
TL 80 8M 50 18 GG 80 3020 75 203,72 202,35 180 60 51 4.5
TL 90 8M 50 19 GG 90 3020 75 229,18 227,81 160 204 60 51 4.5
TL112 8M 50 19 GG 112 3020 75 285,21 283,83 170 254 60 51 4.5
TL144 8M 50 20 GG 144 3020 75 366,69 365,32 170 336 60 51 4.5
TL 168 8M 50 14 GG 168 3525 90 427.81 426.44 198 395 60 65 2.5
TL 192 8M 50 14 GG 192 3525 90 488.92 487.55 198 455 60 65 2.5
