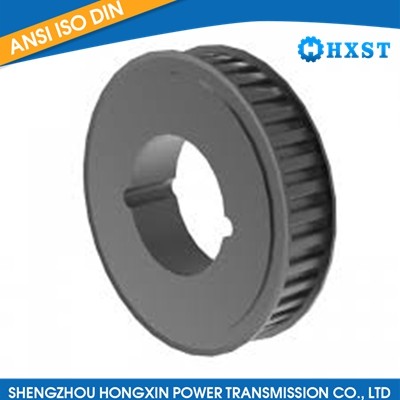

HTP 8M-30 Taper Bore Timing Pulley
  1. HTP 8M-30 Taper Bore Timing Pulley

HTP 8M-30 Taper Bore Timing Pulley

Product Item:HXST-276

Model:HTP 8M-30 Taper Bore Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

HTP 8M-30 Taper Bore Timing Pulley , 8m timing pulley , htd timing belt 8mm pitch , taper bore pulley
Send InquiryLive chat

Description

The HTP 8M-30 Taper Bore Timing Pulley is a specific type of timing pulley used in power transmission systems. Here's some information about this particular pulley:

Size: The designation "8M-30" indicates the pitch size and belt length. In this case, it refers to an 8mm pitch size and a belt length of 30 teeth.
Taper Bore: Like the previous examples, the taper bore feature means that the pulley has a tapered inner bore, allowing for easy installation and removal using a locking device.
Material: The material used for this timing pulley can vary but is typically made from aluminum, steel, or other durable materials depending on the application requirements.
Timing Belt Compatibility: The 8M-30 designation corresponds to a specific tooth profile and pitch size, which must match with the corresponding timing belt for proper operation and synchronization in the power transmission system.
Application: Timing pulleys are commonly used in various industrial applications such as conveyors, robotics, printing machinery, and CNC machines where precise motion control and synchronization are essential.



8M
PITCH - 8 mm
FOR BELT WIDTH - 30 mm


Code Type Material Teeth Buss Hole max dp de Df Dm Di F L R n◦ flange
TL 22 8M 30 16F St 22 1008 25 56,02 54,65 60 37 38 22 16 308
TL 24 8M 30 16F St 24 1108 25 61,11 59,74 66 44 38 22 16 310
TL 26 8M 30 16F St 26 1108 25 66,21 64,84 71 44 38 22 16 311
TL 28 8M 30 16F St 28 1210 32 71,30 70,08 75 50 38 25 13 312
TL 30 8M 30 15F St 30 1615 42 76,39 75,13 83 38 38 314
TL 32 8M 30 15F St 32 1615 42 81,49 80,16 87 38 38 315
TL 34 8M 30 15F St 34 1615 42 86,58 85,21 91 38 38 316
TL 36 8M 30 15F St 36 1615 42 91,67 90,30 98 38 38 319
TL 38 8M 30 15F St 38 1615 42 96,77 95,39 103 38 38 320
TL 40 8M 30 15F St 40 1615 42 101,86 100,49 106 38 38 321
TL 44 8M 30 18F St 44 2012 50 112,05 110,67 119 86 38 32 3 325
TL 48 8M 30 18F St 48 2012 50 122,23 120,86 127 90 38 32 3 327
TL 56 8M 30 18F St 56 2012 50 142,60 141,23 148 110 38 32 3 333
TL 64 8M 30 10F St 64 2517 60 162,97 161,60 168 125 38 45 7 338
TL 72 8M 30 11F St 72 2517 60 183,35 181,97 192 125 158 38 45 7 340
TL 80 8M 30 11 GG 80 2517 60 203,72 202,35 125 180 38 45 7
TL 90 8M 30 11 GG 90 2517 60 229,18 227,81 125 204 38 45 7
TL 112 8M 30 12 GG 112 2517 60 285,21 283,83 125 254 38 45 7
TL 144 8M 30 12 GG 144 2517 60 366,69 365,32 125 336 38 45 7
