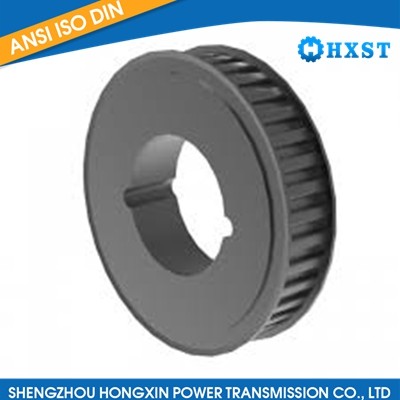

HTP 5M-15 Taper Bore Timing Pulley

Description

HTP 5M-15 Taper Bore Timing Pulley is a specific type of timing pulley used in power transmission systems. Here's some information about this particular pulley:

Size: The designation "5M-15" indicates the pitch size and belt length. In this case, it refers to a 5mm pitch size and a belt length of 15 teeth.
Taper Bore: Similar to the previous examples, the taper bore feature means that the pulley has a tapered inner bore, allowing for easy installation and removal using a locking device.
Material: The material used for this timing pulley can vary but is typically made from aluminum, steel, or other durable materials depending on the application requirements.
Timing Belt Compatibility: The 5M-15 designation corresponds to a specific tooth profile and pitch size, which must match with the corresponding timing belt for proper operation and synchronization in the power transmission system.
Application: Timing pulleys are commonly used in various industrial applications such as conveyors, robotics, printing machinery, and CNC machines where precise motion control and synchronization are essential.

5M
PITCH - 5 mm
FOR BELT WIDTH - 15 mm

Code	Type	Material	Teeth	Buss	Hole max	dp	de	Df	Dm	Di	F	L	R	n◦ flange
TL 34 5M 15	15F	St	34	1008	25	54.11	52.97	57			22	22		213
TL 36 5M 15	15F	St	36	1108	25	57.3	56.15	60			22	22		214
TL 38 5M 20	15F	St	38	1108	25	60.48	59.34	66			22	22		216
TL 40 5M 15	15F	St	40	1108	25	63.66	62.52	71			22	22		217
TL 44 5M 15	15F	St	44	1108	25	70.03	68.89	75			22	22		218
TL 48 5M 15	10F	St	48	1210	32	76.39	75.25	83	59		22	25	3	219
TL 56 5M 15	10F	St	56	1210	32	89.13	87.99	93	70		22	25	3	222
TL 64 5M 15	10F	St	64	1210	32	101.86	100.72	106	80		22	25	3	224
TL 72 5M 15	10	St	72	1610	42	114.59	113.45		92		22	25	3
TL 80 5M 15	10	St	80	1610	42	127.32	126.18		92		22	25	3
TL 90 5M 15	10	St	90	1610	42	143.24	142.1		92		22	25	3
TL 112 5M 15	10	St	112	2012	50	178.25	177.11		110		20	32	12
TL 136 5M 15	13	St	136	2012	50	216.46	215.31		110	199	20	32	6
